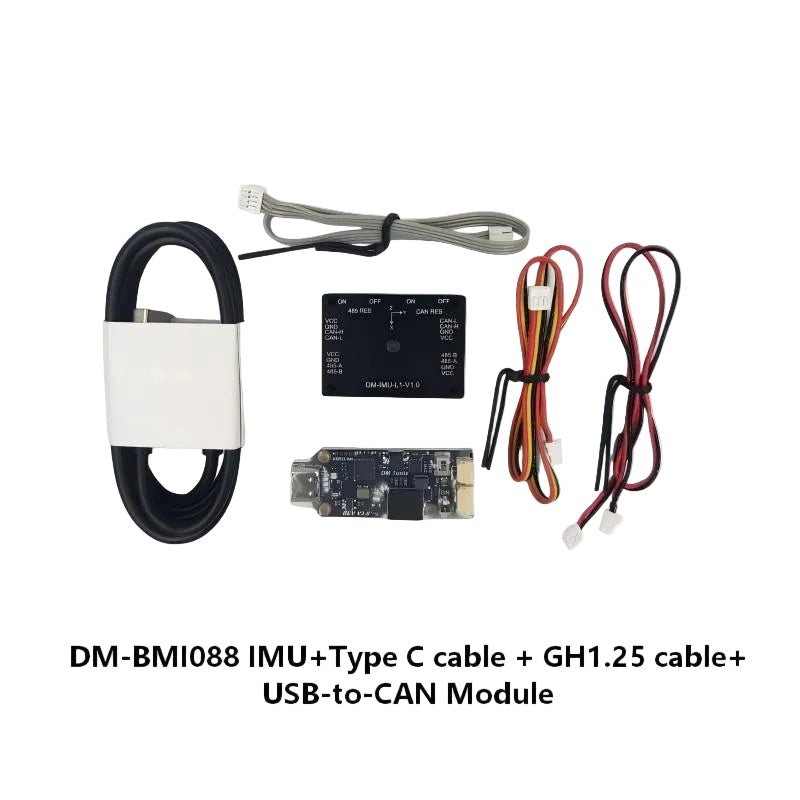

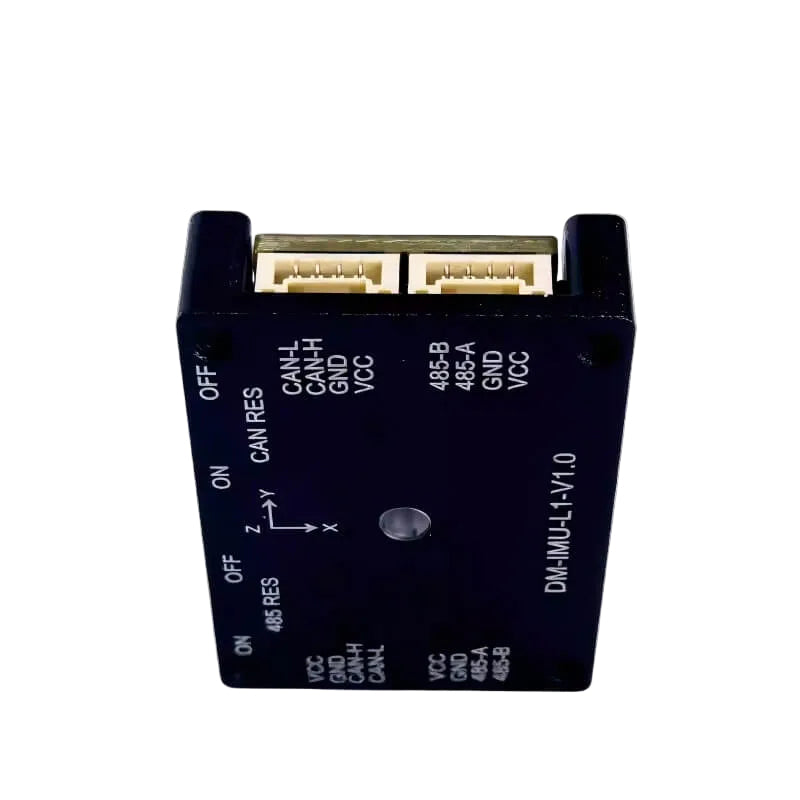

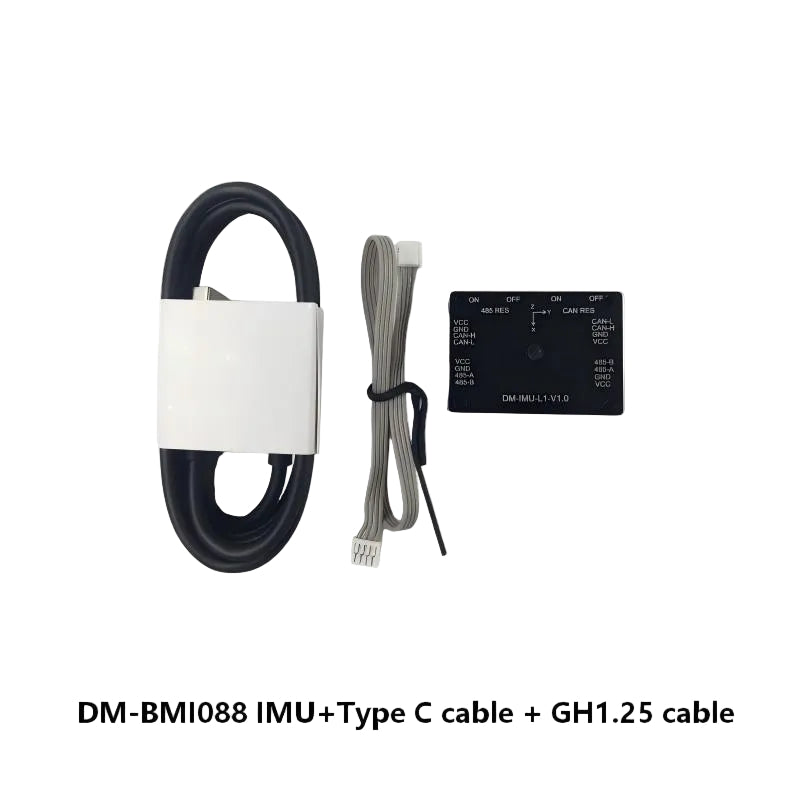

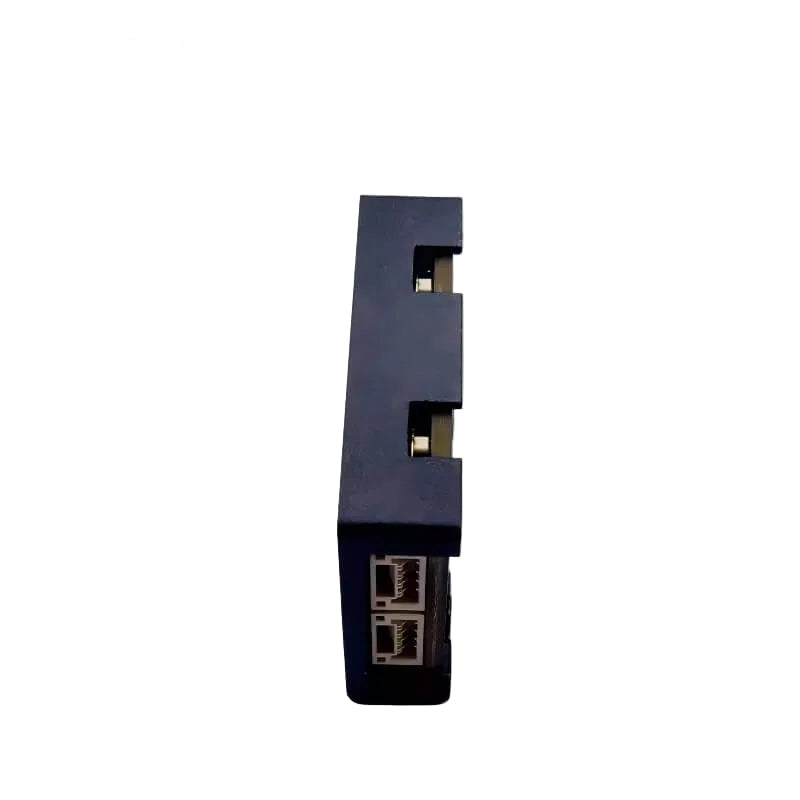

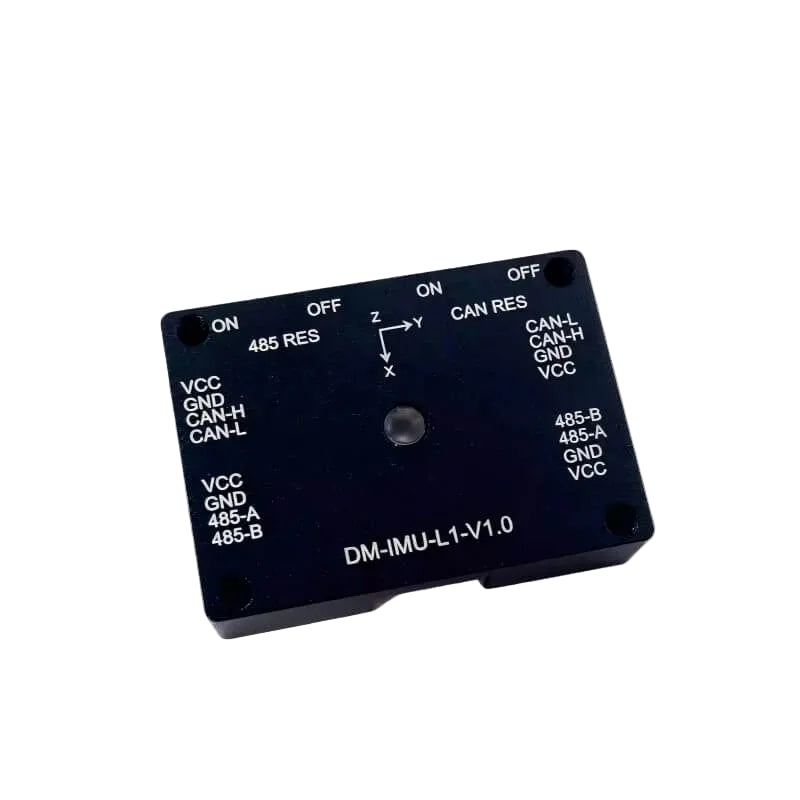

DAMIAO DM-IMU-L1 (BMI088)

¥35.00

Taxes included.

VersionDM-IMU-L1 (BMI088)

Communication Module NOT Include USB-to-CAN Module

Accessory Kit NOT Include Type C cable + GH1.25 cable

Made with care

Great value

Elegant design

Quality materials

This product is crafted with quality materials to ensure durability and performance. Designed with your convenience in mind, it seamlessly fits into your everyday life.

We strive to process and ship all orders in a timely manner, working diligently to ensure that your items are on their way to you as soon as possible.

We are committed to ensuring a positive shopping experience for all our customers. If for any reason you wish to return an item, we invite you to reach out to our team for assistance, and we will evaluate every return request with care and consideration.

DAMIAO DM-IMU-L1 · Apple风格

Application Scenarios

🤖Humanoid Robots

🦾Robotic Arms

🦿Exoskeletons

🐕Quadruped Robots

🚗AGV Vehicles

🔧ARU Robots

Technical Specifications

Parameter	Value
Model	DM-IMU-L1 (BMI088)
Input voltage	5-28V
Power	@24V when temperature rises 2.5W, stabilized 0.47W
Communication interface	USB, RS485, CAN
Output frequency	100-1000 Hz
Size	36 x 26 x 9 mm
Weight	11.5 g
Gyroscope range	±2000 °/s
Gyroscope DOF	3
Gyroscope nonlinearity	±0.05 %FS
Gyroscope zero offset	±1 °/s
Gyroscope bandwidth	116 Hz
Accelerometer range	±6 G
Accelerometer DOF	3
Accelerometer nonlinearity	±0.5 %FS
Accelerometer zero offset	20 mg
Accelerometer bandwidth	230 Hz
Roll range	±180°
Yaw range	±180°
Pitch range	±90°
Roll drift (1 h after cal.)	0.02°
Yaw drift (1 h after cal.)	12.686°
Pitch drift (1 h after cal.)	0.064°
