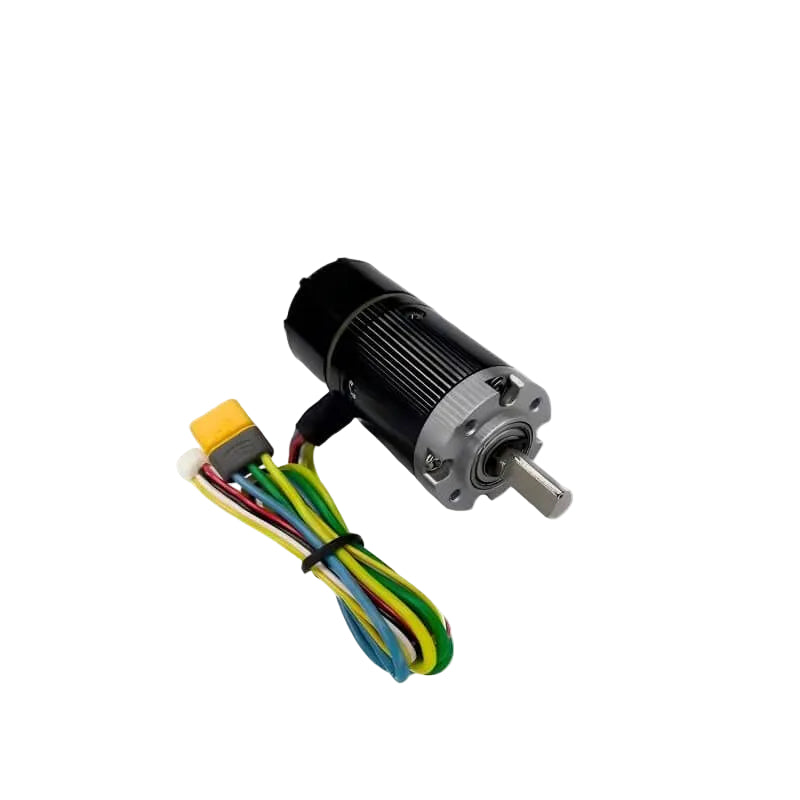

DAMIAO DM-2325 Motor

¥45.00

Taxes included.

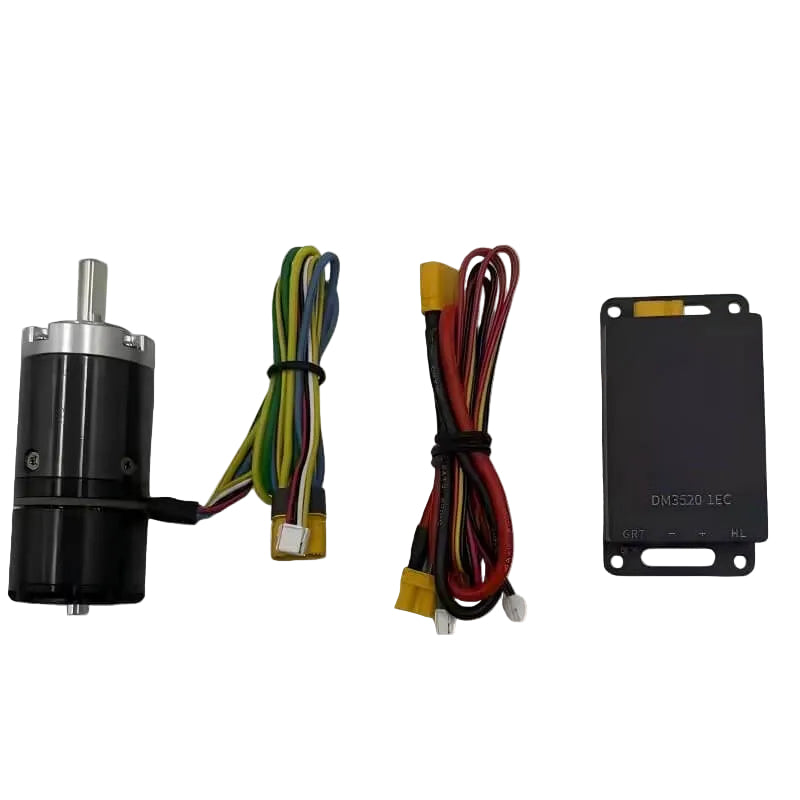

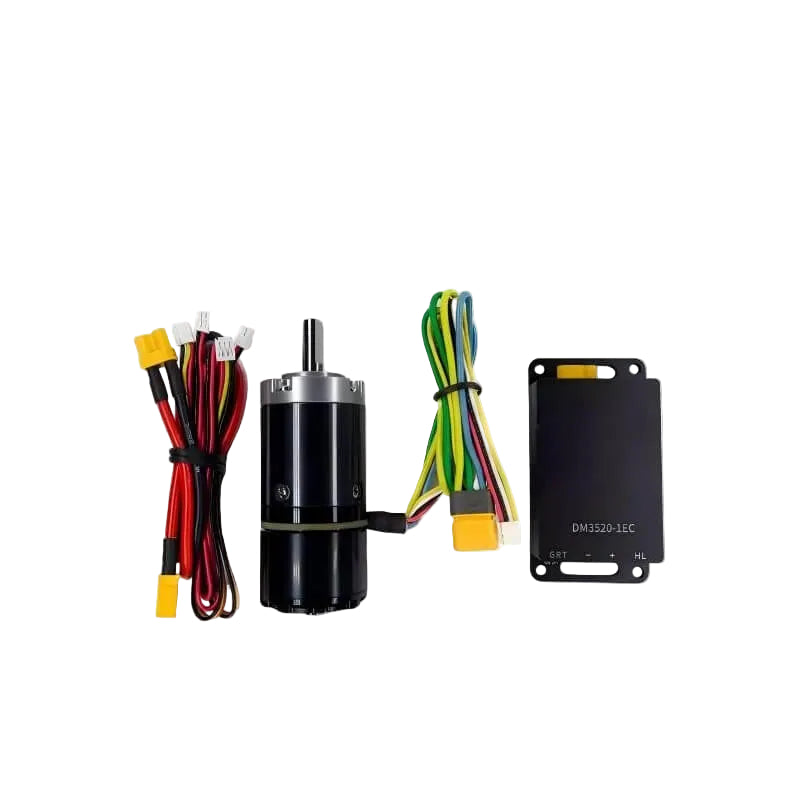

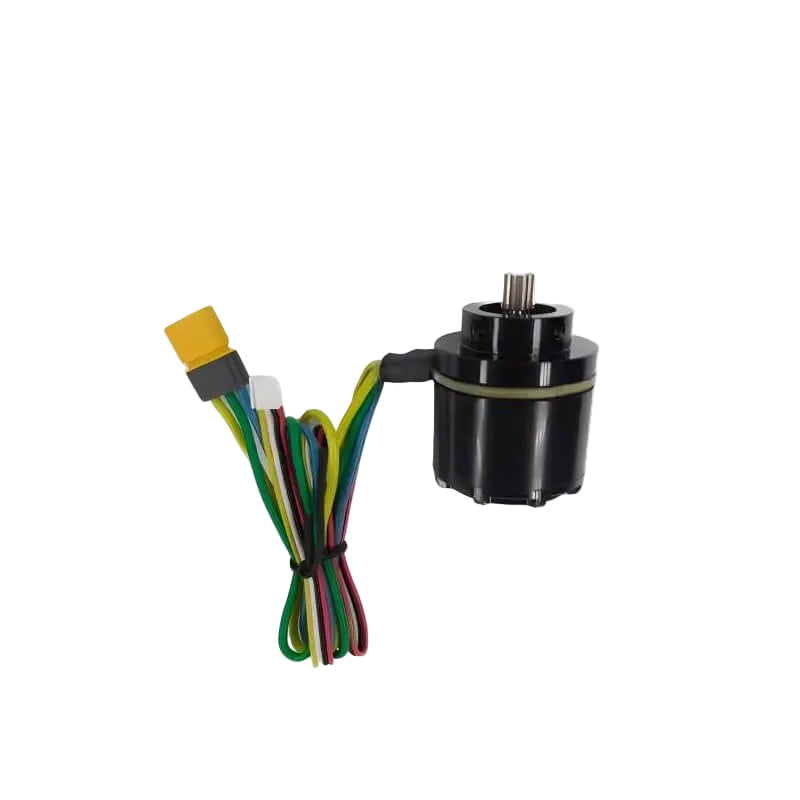

Version NOT Include Gearbox Include Gearbox Include Gearbox & Driver Board

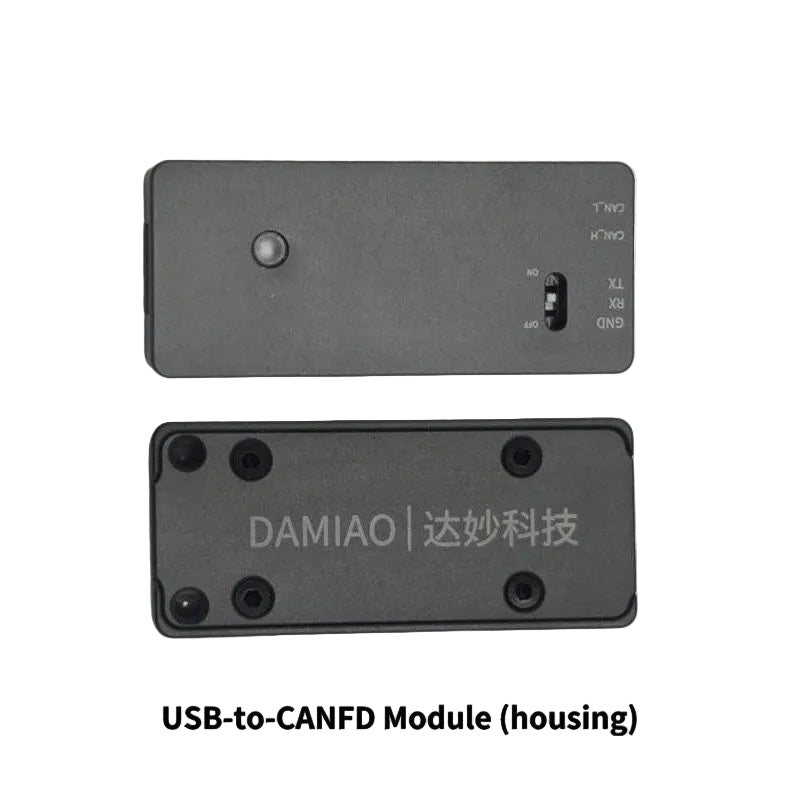

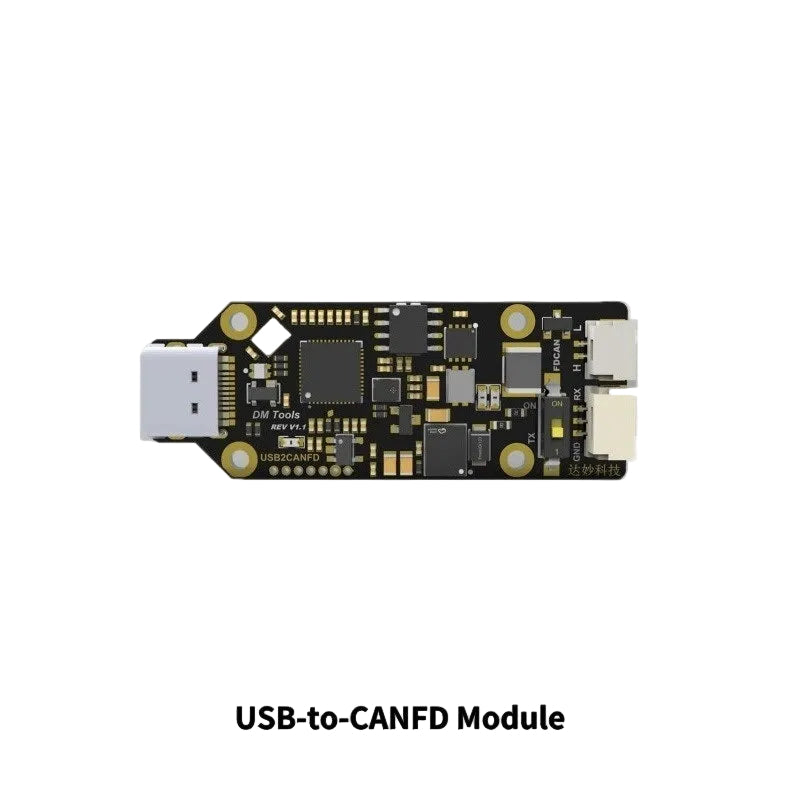

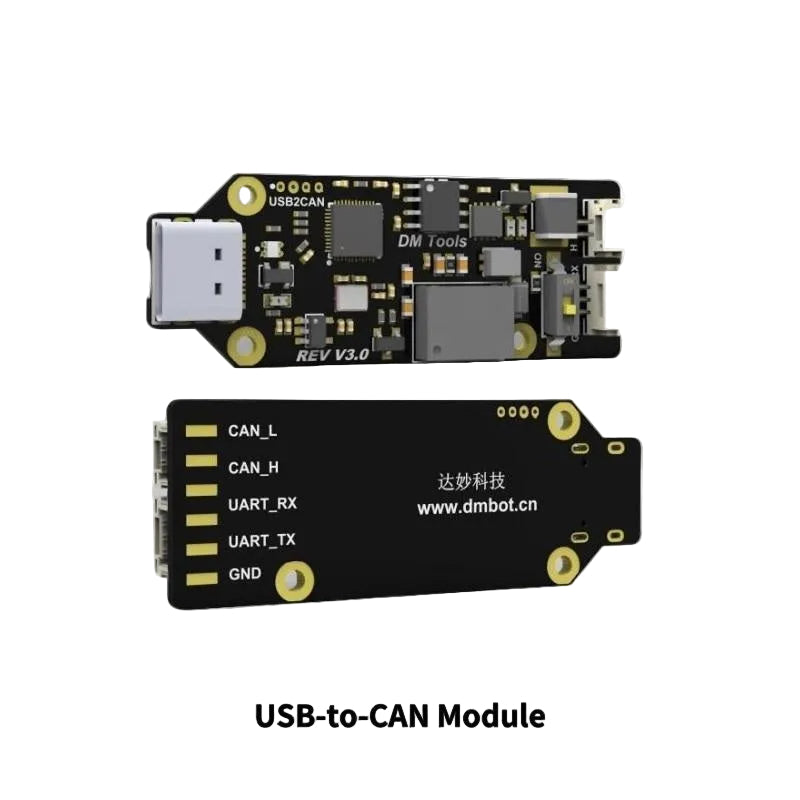

Communication Module NOT Include USB-to-CAN Module USB-to-CANFD Module USB-to-CANFD Module (housing)

Made with care

Great value

Elegant design

Quality materials

This product is crafted with quality materials to ensure durability and performance. Designed with your convenience in mind, it seamlessly fits into your everyday life.

We strive to process and ship all orders in a timely manner, working diligently to ensure that your items are on their way to you as soon as possible.

We are committed to ensuring a positive shopping experience for all our customers. If for any reason you wish to return an item, we invite you to reach out to our team for assistance, and we will evaluate every return request with care and consideration.

DAMIAO DM-2325 · Apple风格

Application Scenarios

🤖Humanoid Robots

🦾Robotic Arms

🦿Exoskeletons

🐕Quadruped Robots

🚗AGV Vehicles

🔧ARU Robots

Technical Specifications

Parameter	Value
Model	DM-2325
Nominal Voltage	24V (wide-voltage 24–48V)
Nominal Current	5A / 3.2A
Peak Current	13A / 7.5A
Nominal Torque	5 N·m
Peak Torque	2 N·m
Nominal Speed	380 rpm
Max. No-load Speed	560 rpm
Reduction Ratio	1:25
Pole Pairs	7
Phase Inductance	75 μH
Phase Resistance	0.2915 Ω
Max. radial load	395 N
Outer Diameter	28 mm
Height	77.6 mm
Motor Weight	172.2 g
Encoder Type	Incremental encoder
Control Interface	CAN @ 1 Mbps / FD CAN @ 5 Mbps (Max)
Configuration Interface	UART @ 921600 bps
Control Modes	MIT / Speed / Position
Protection	Over-temp. 120℃, config. ≤100℃; over-voltage ≤60V; over-current ≤13A; under-voltage ≥15V; comm. loss exit enable
