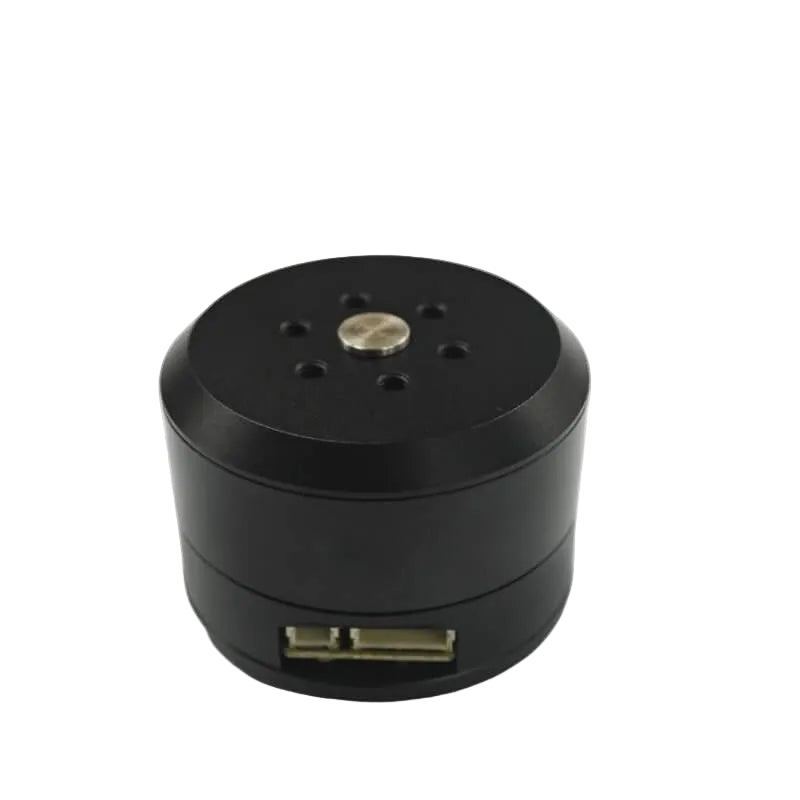

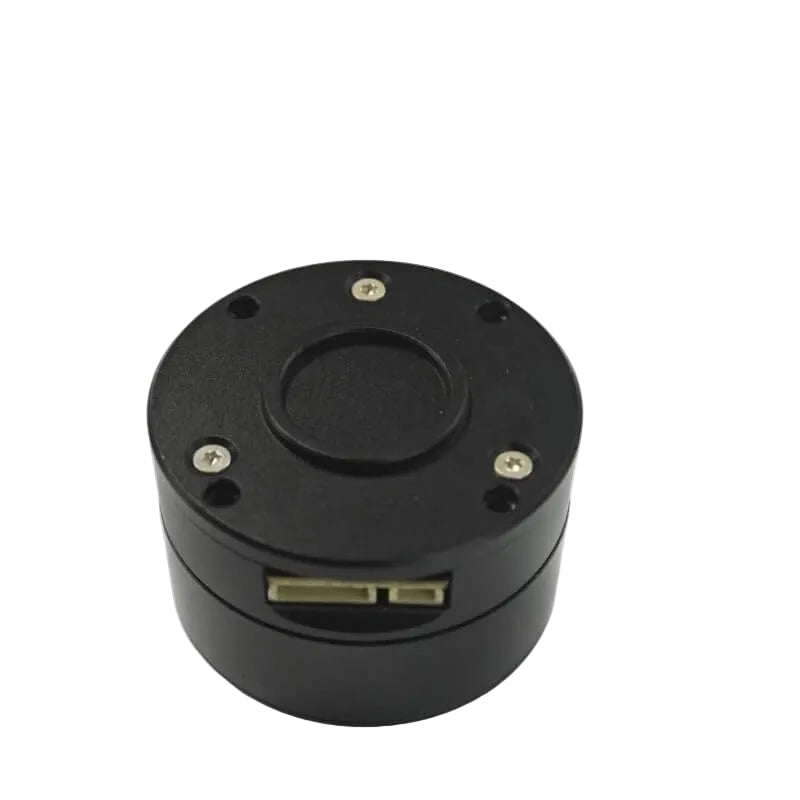

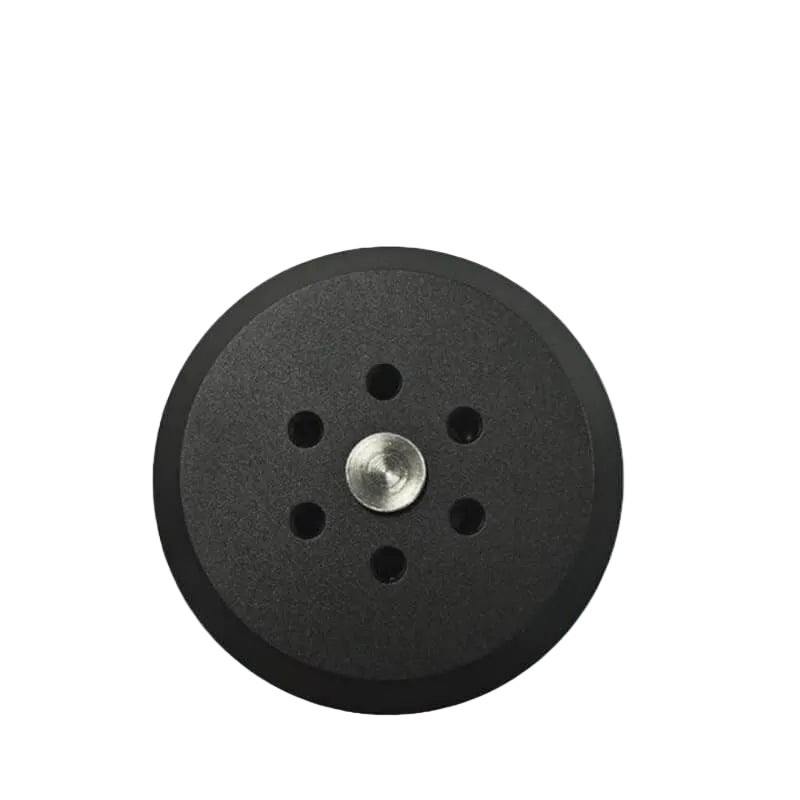

DAMIAO DM-H3510 Motor

¥50.00

Taxes included.

VersionInclude Driver

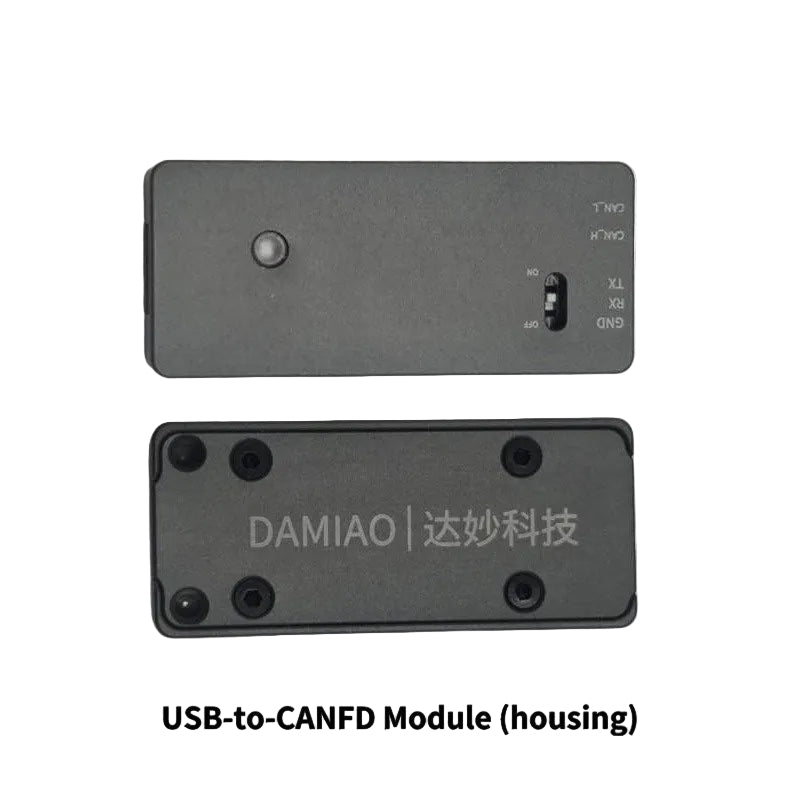

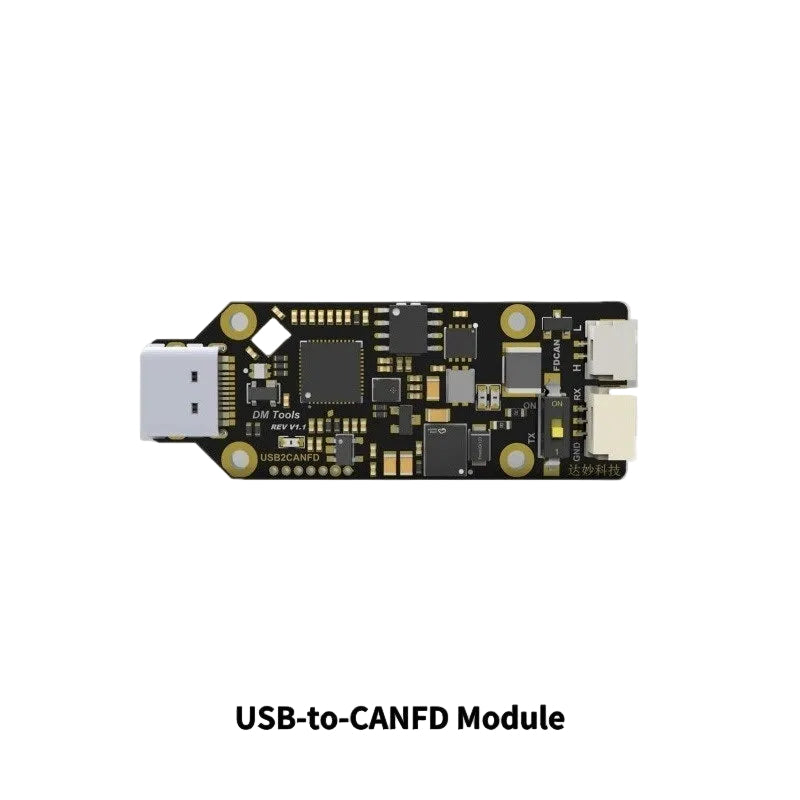

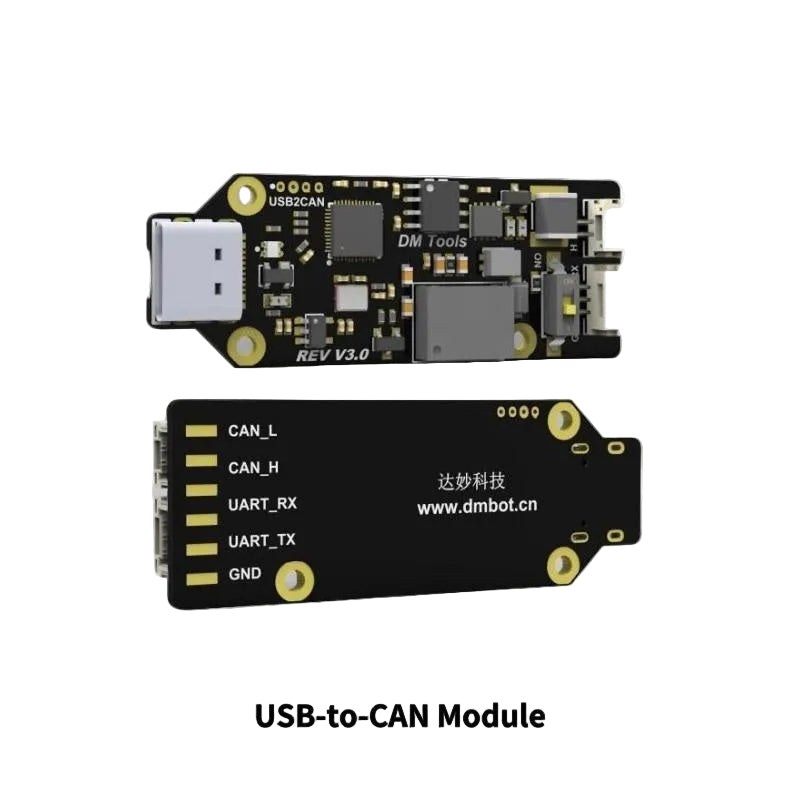

Communication Module NOT Include USB-to-CAN Module USB-to-CANFD Module USB-to-CANFD Module (housing)

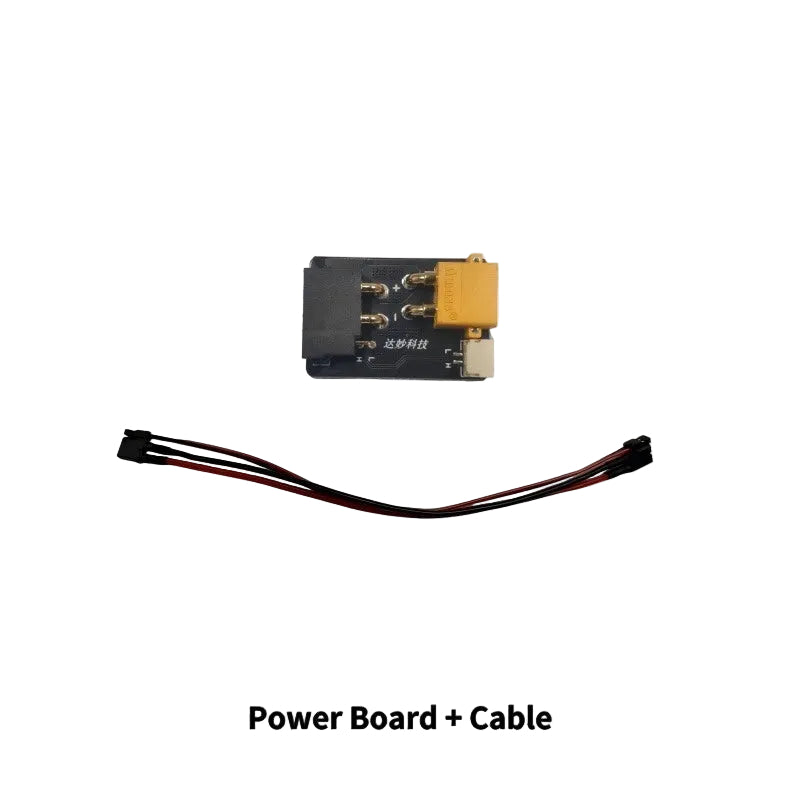

Accessory Kit NOT Include Include Power Board + Cable

Made with care

Great value

Elegant design

Quality materials

This product is crafted with quality materials to ensure durability and performance. Designed with your convenience in mind, it seamlessly fits into your everyday life.

We strive to process and ship all orders in a timely manner, working diligently to ensure that your items are on their way to you as soon as possible.

We are committed to ensuring a positive shopping experience for all our customers. If for any reason you wish to return an item, we invite you to reach out to our team for assistance, and we will evaluate every return request with care and consideration.

DAMIAO DMH3510 · Apple风格

Application Scenarios

🤖Humanoid Robots

🦾Robotic Arms

🦿Exoskeletons

🐕Quadruped Robots

🚗AGV Vehicles

🔧ARU Robots

Technical Specifications

Parameter	Value
Model	DMH3510
Nominal Voltage	24V
Nominal Current	1.1A
Peak Current	3.2A
Nominal Torque	0.18 N·m
Peak Torque	0.45 N·m
Nominal Speed	500 rpm
Max. No-load Speed	1800 rpm
Reduction Ratio	1:1
Pole Pairs	7
Phase Inductance	1.67 μH
Phase Resistance	2.25 Ω
Outer Diameter	42 mm
Height	31.5 mm
Motor Weight	116 g
Encoder Type	Magnetic Encoder
Control Interface	CAN @ 1 Mbps, CAN FD @ 5 Mbps
Configuration Interface	UART @ 921600 bps
