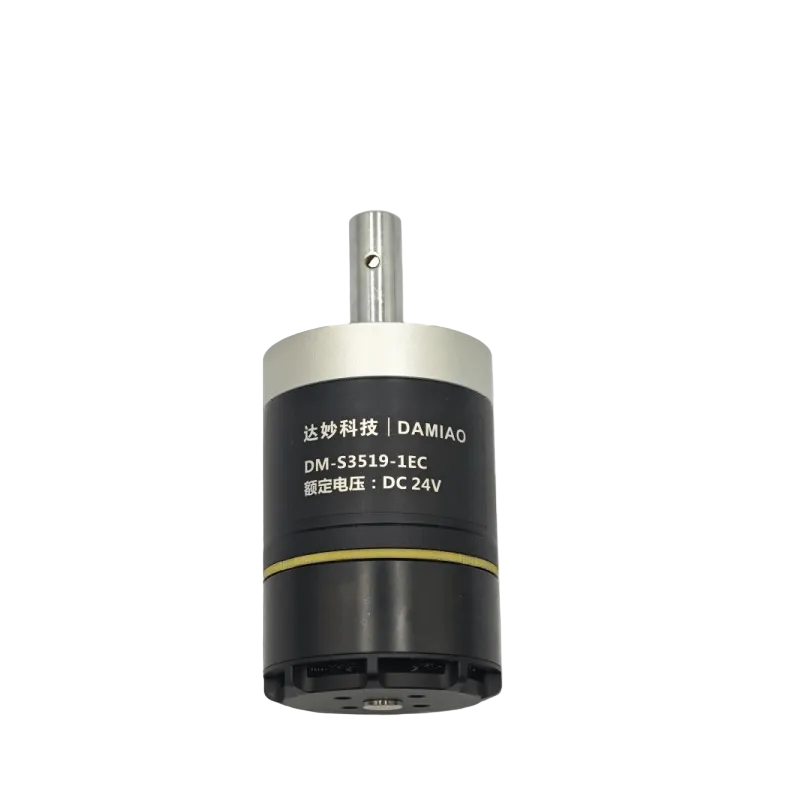

DAMIAO DM-S3519-1EC Motor

¥75.00

Taxes included.

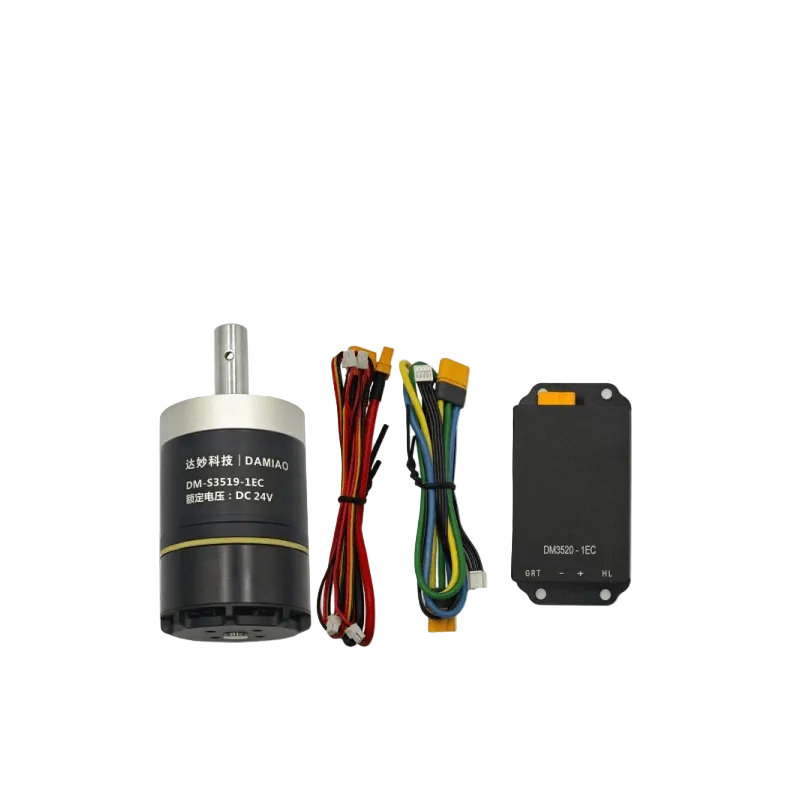

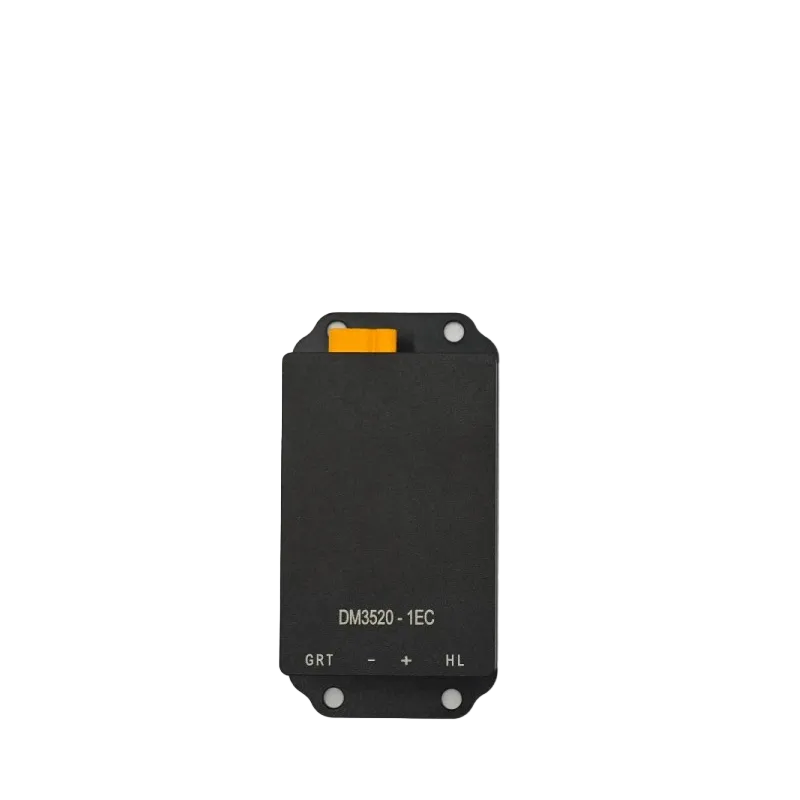

Version NOT Include Driver Include Driver

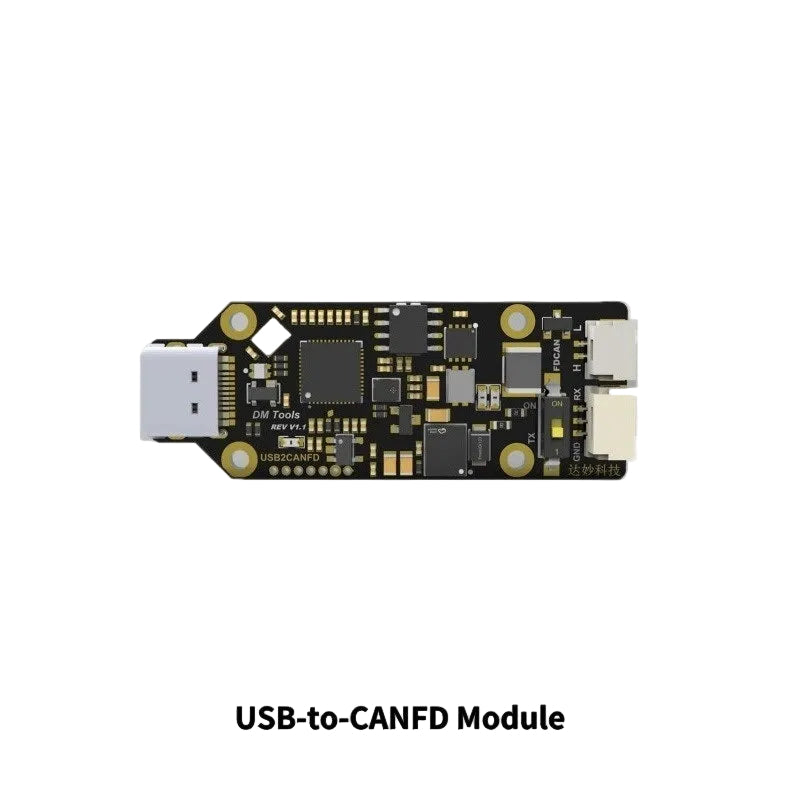

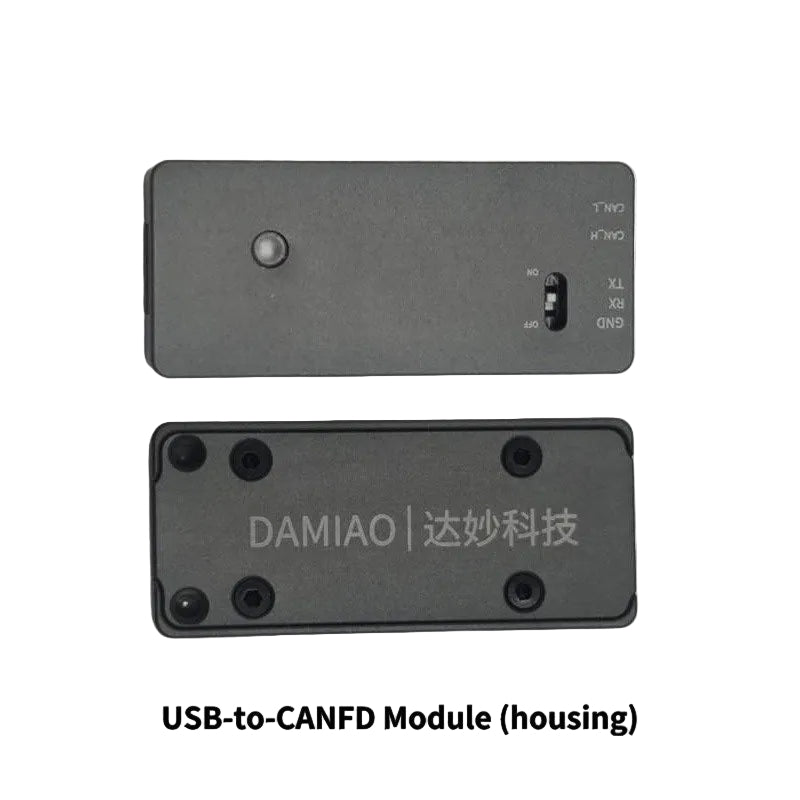

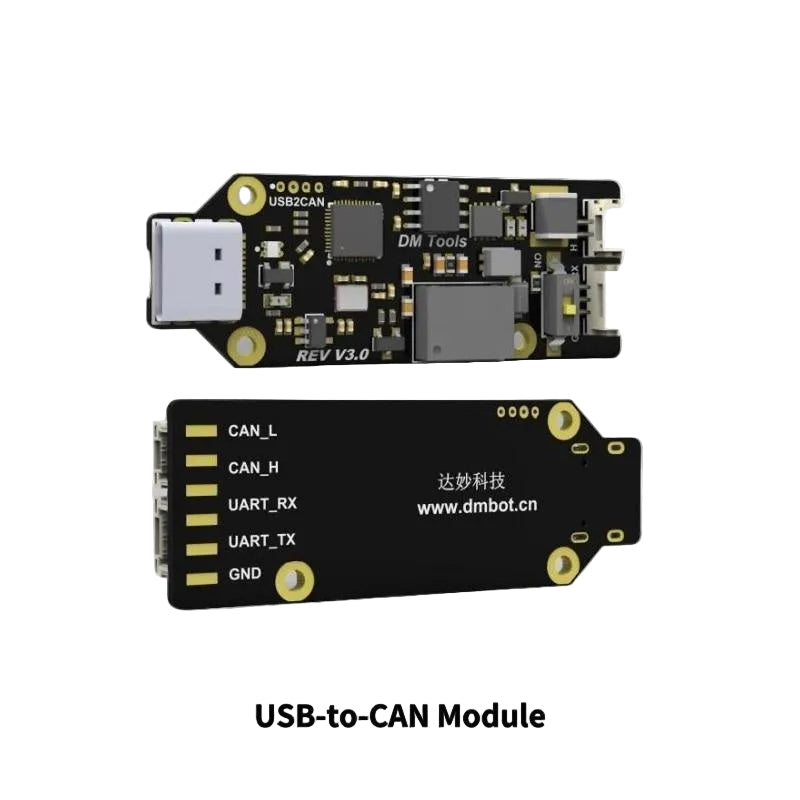

Communication Module NOT Include USB-to-CAN Module USB-to-CANFD Module USB-to-CANFD Module (housing)

Made with care

Great value

Elegant design

Quality materials

This product is crafted with quality materials to ensure durability and performance. Designed with your convenience in mind, it seamlessly fits into your everyday life.

We strive to process and ship all orders in a timely manner, working diligently to ensure that your items are on their way to you as soon as possible.

We are committed to ensuring a positive shopping experience for all our customers. If for any reason you wish to return an item, we invite you to reach out to our team for assistance, and we will evaluate every return request with care and consideration.

DAMIAO DM-S3519-1EC · Apple风格

Application Scenarios

🤖Humanoid Robots

🦾Robotic Arms

🦿Exoskeletons

🐕Quadruped Robots

🚗AGV Vehicles

🔧ARU Robots

Technical Specifications

Parameter	Value
Model	DM-S3519-1EC
Nominal Voltage	24V (wide-voltage 15V–52V)
Nominal Current	9.2A
Peak Current	20.5A
Nominal Torque	3.5 N·m
Peak Torque	7.8 N·m
Nominal Speed	395 rpm
Max. No-load Speed	435 rpm
Reduction Ratio	3591/187 (1:19.2)
Pole Pairs	7
Phase Inductance	55 μH
Phase Resistance	0.2 Ω
Outer Diameter	42 mm
Height	91.5 mm
Motor Weight	396 g
Encoder Resolution	14 Bit
Encoder Quantity	2
Encoder Type	Incremental Encoder
Control Interface	CAN
Configuration Interface	UART @ 921600 bps
