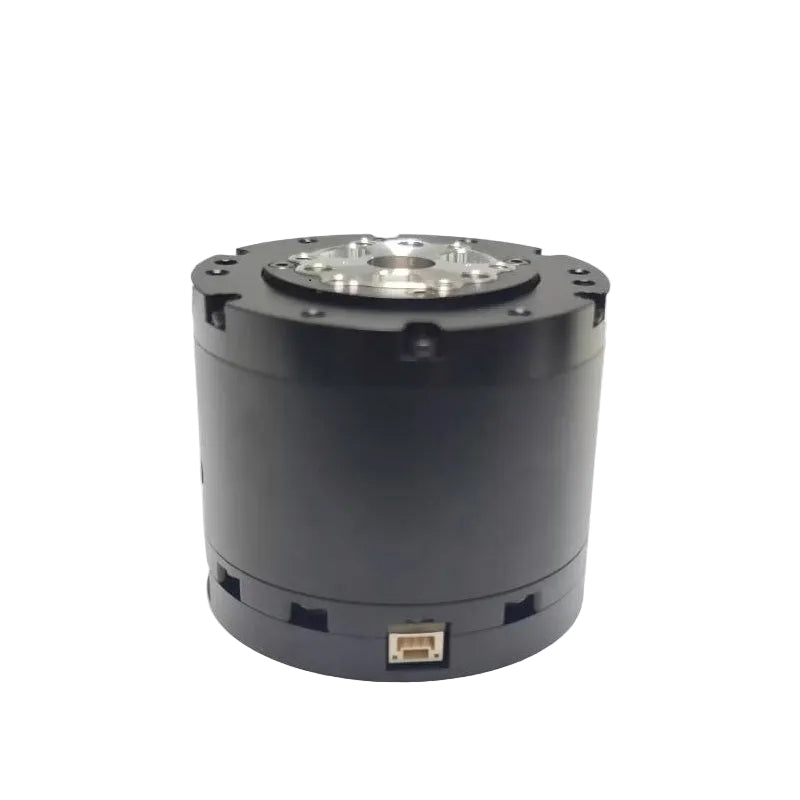

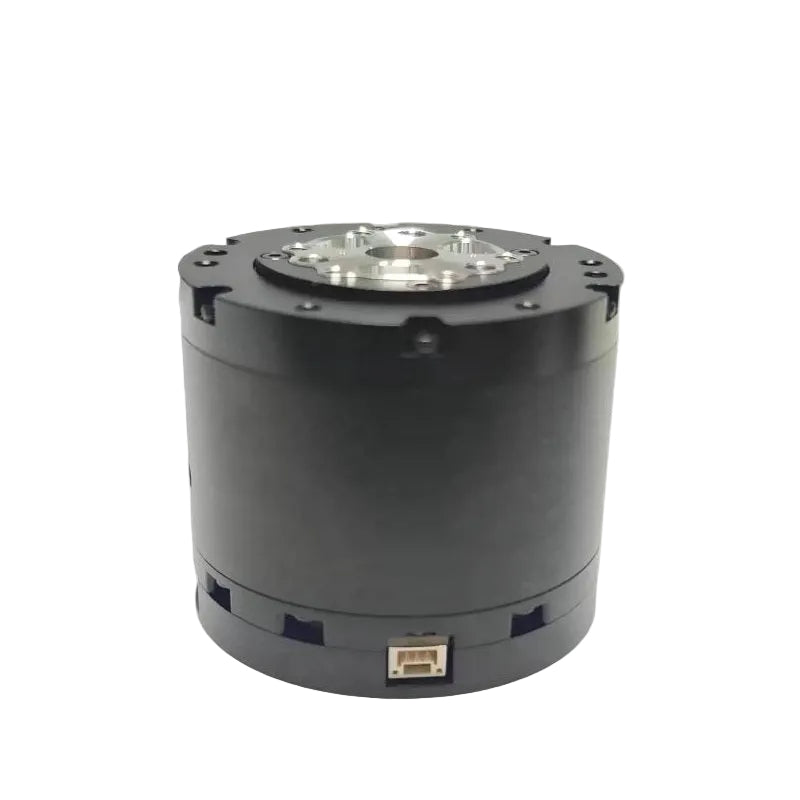

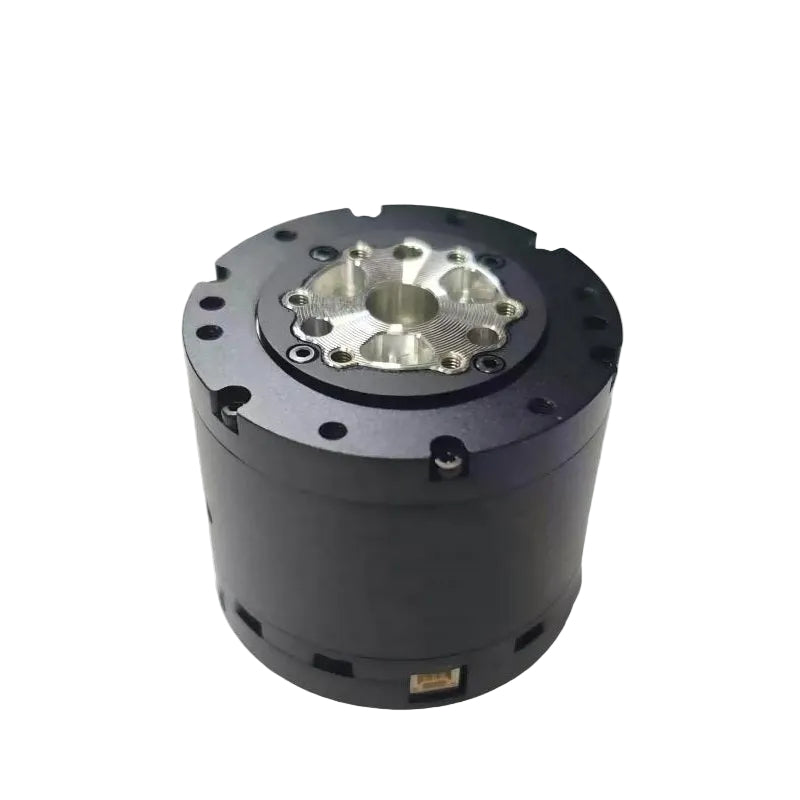

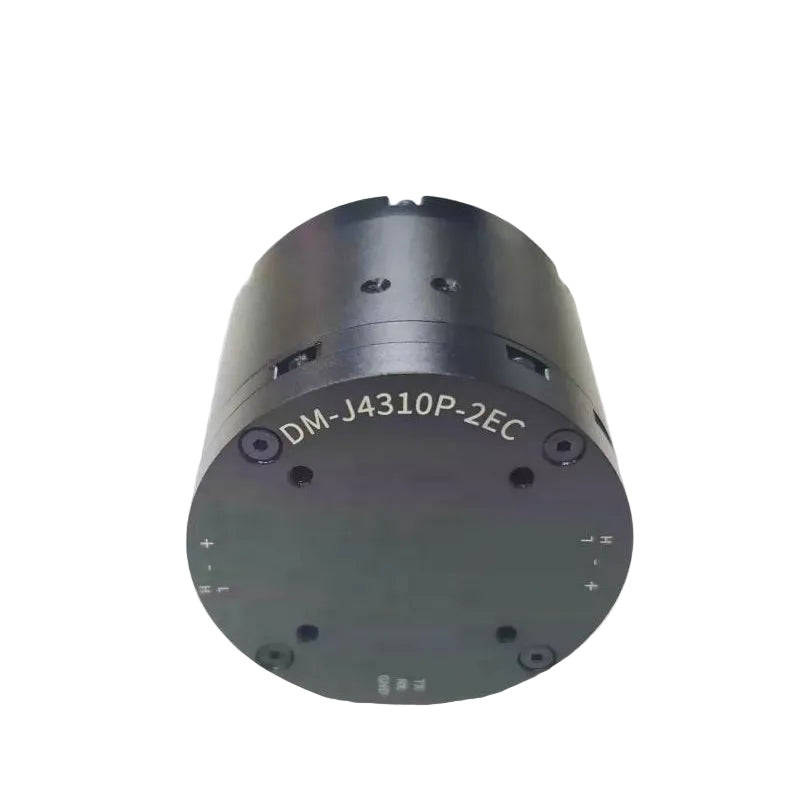

DAMIAO DM-J4310P-2EC Motor

¥155.00

Taxes included.

Version V4 Drive (24V) V4 Drive (48V)

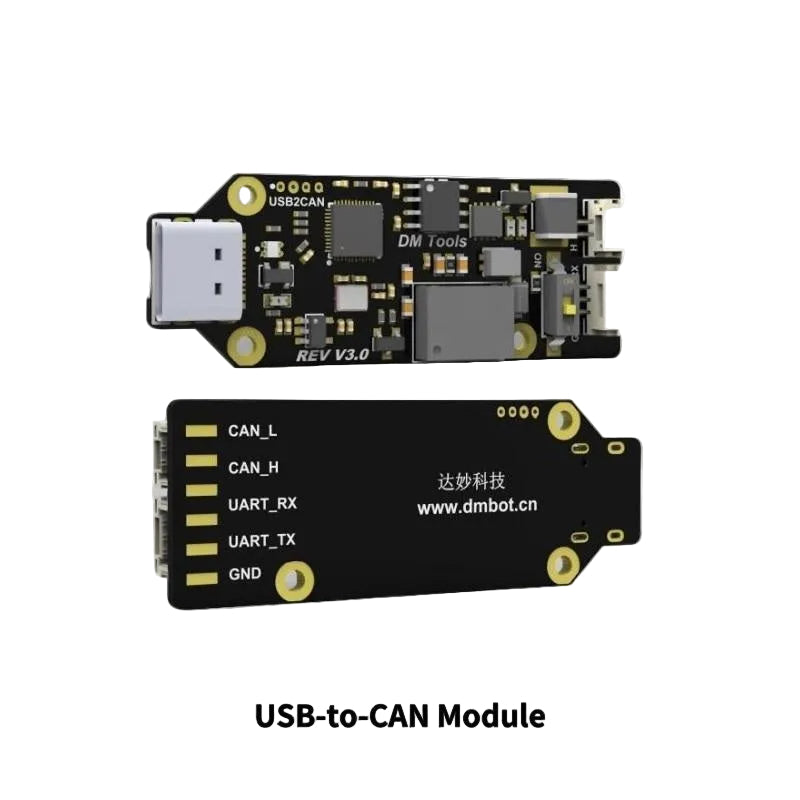

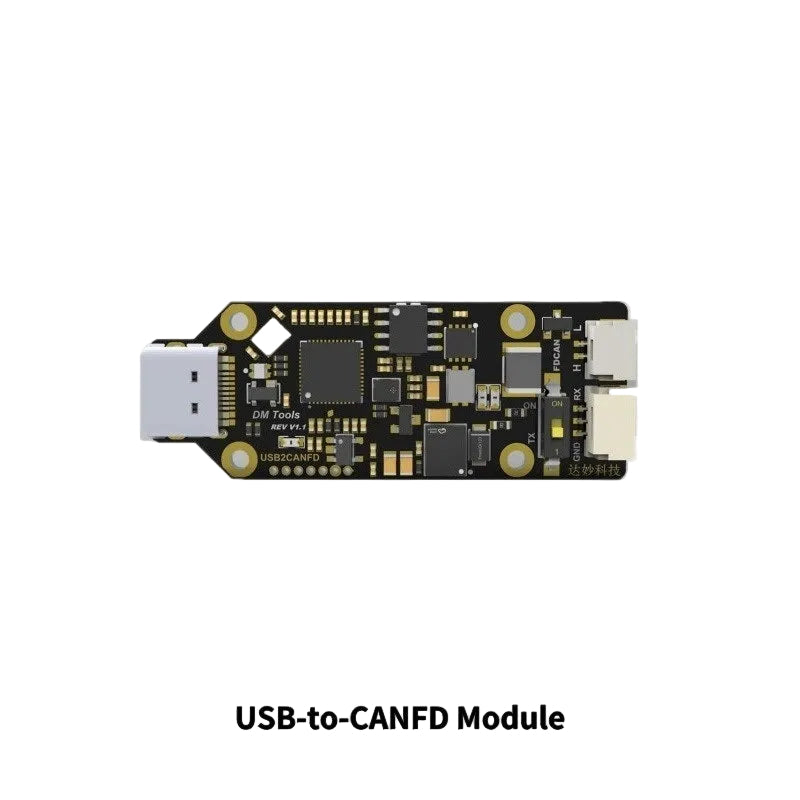

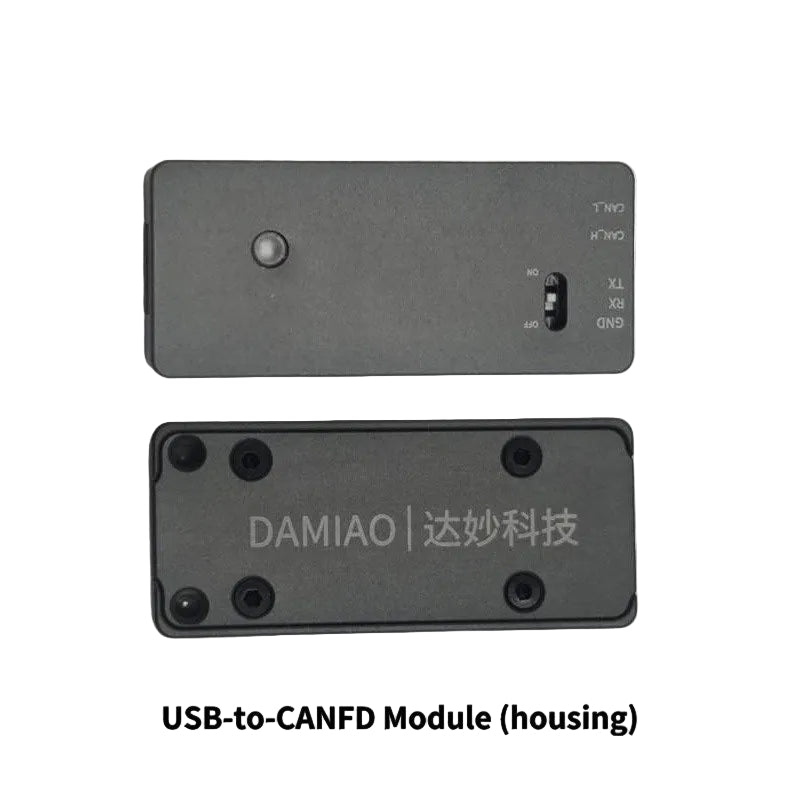

Communication Module NOT Include USB-to-CAN Module USB-to-CANFD Module USB-to-CANFD Module (housing)

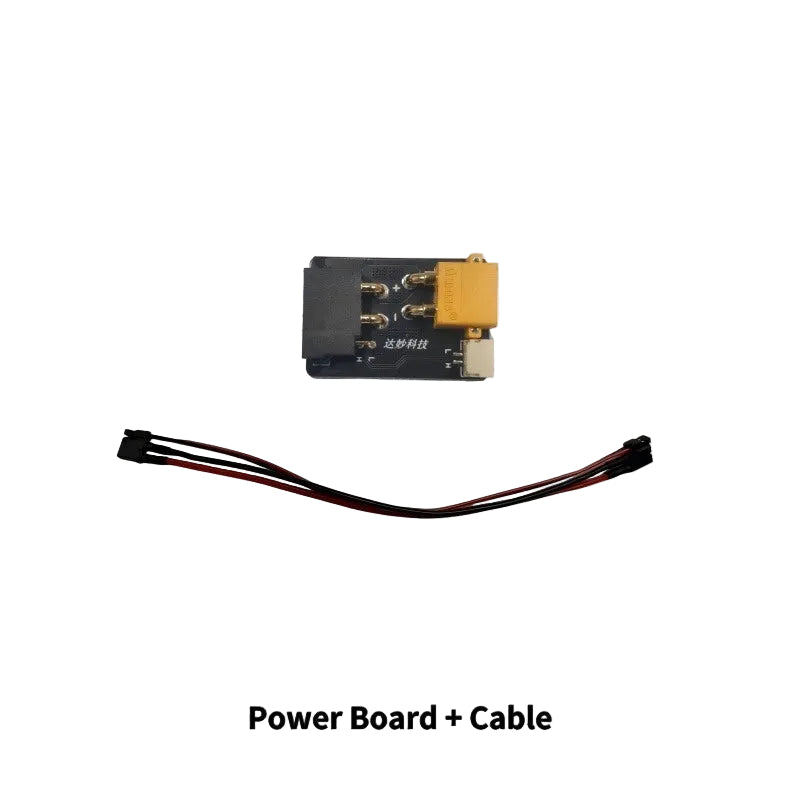

Accessory Kit NOT Include Include Power Board + Cable

Made with care

Great value

Elegant design

Quality materials

This product is crafted with quality materials to ensure durability and performance. Designed with your convenience in mind, it seamlessly fits into your everyday life.

We strive to process and ship all orders in a timely manner, working diligently to ensure that your items are on their way to you as soon as possible.

We are committed to ensuring a positive shopping experience for all our customers. If for any reason you wish to return an item, we invite you to reach out to our team for assistance, and we will evaluate every return request with care and consideration.

DAMIAO DM-J4310P-2EC · Apple风格

Application Scenarios

🤖Humanoid Robots

🦾Robotic Arms

🦿Exoskeletons

🐕Quadruped Robots

🚗AGV Vehicles

🔧ARU Robots

Technical Specifications

Parameter	DM-J4310P-2EC (24V)	DM-J4310P-2EC (48V)
Model	DM-J4310P-2EC (24V)	DM-J4310P-2EC (48V)
Nominal Voltage	24V	48V
Nominal Current	4.9A / 3.1A @ 24V	4.8A / 1.6A @ 48V
Peak Current	20A / 15.6A @ 24V	20A / 12.8A @ 48V
Nominal Torque	3.5 N·m	3.5 N·m
Peak Torque	12.5 N·m	12.5 N·m
Nominal Speed	120 RPM	120 RPM
Max. No-load Speed	200 RPM	450 RPM
Reduction Ratio	10:1	10:1
Pole Pairs	14	14
Phase Inductance	320 μH	320 μH
Phase Resistance	580 mΩ	580 mΩ
Outer Diameter	57 mm	57 mm
Height	49 mm	49 mm
Motor Weight	325 g	325 g
Encoder Resolution	16 Bit	16 Bit
Encoder Quantity	2	2
Encoder Type	Single-Turn Magnetic	Single-Turn Magnetic
Control Interface	CAN @ 1 Mbps	CAN @ 1 Mbps
Configuration Interface	UART @ 921600 bps	UART @ 921600 bps
Control Mode	MIT / Position / Speed	MIT / Position / Speed
