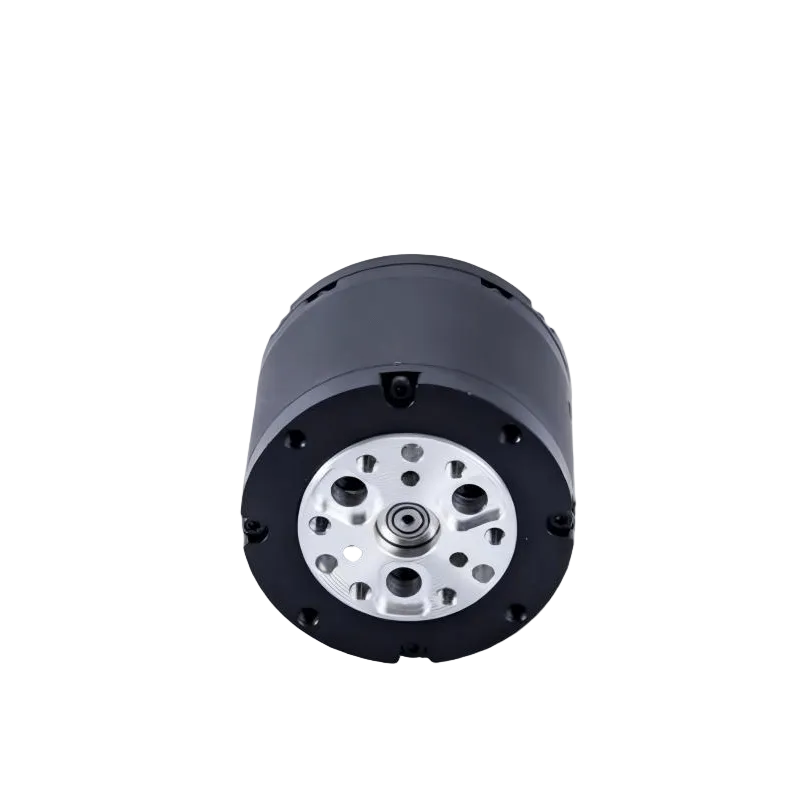

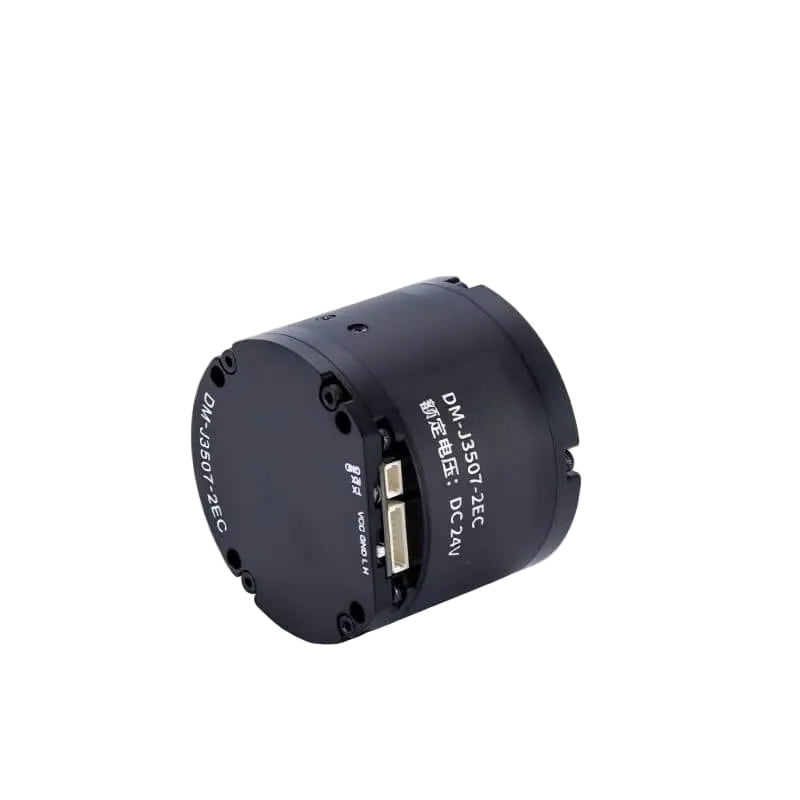

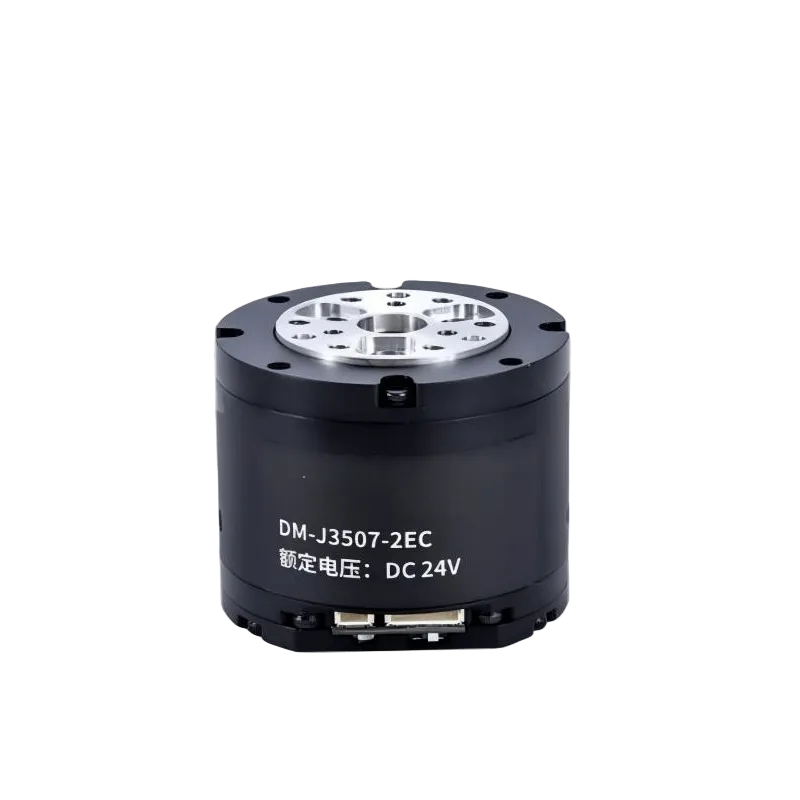

DAMIAO DM-J3507-2EC Motor

¥120.00

Taxes included.

Version Include Driver (24V) Include Driver (48V)

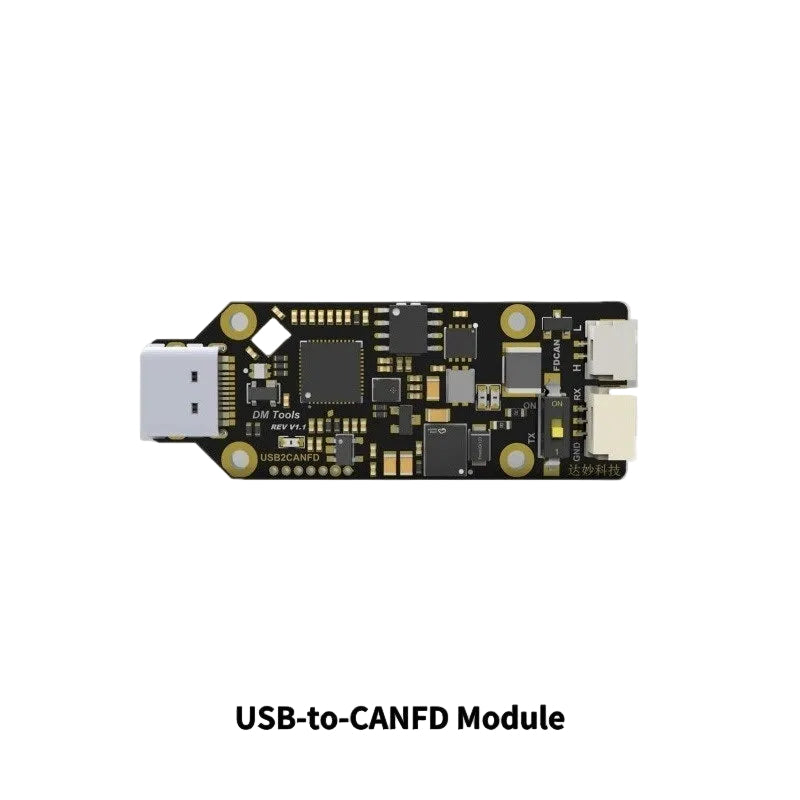

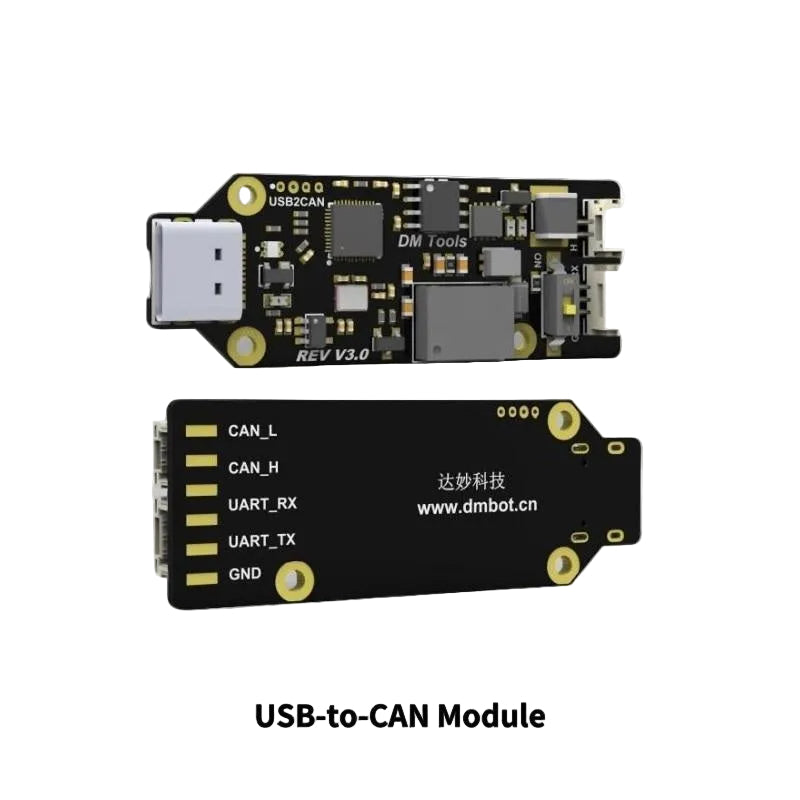

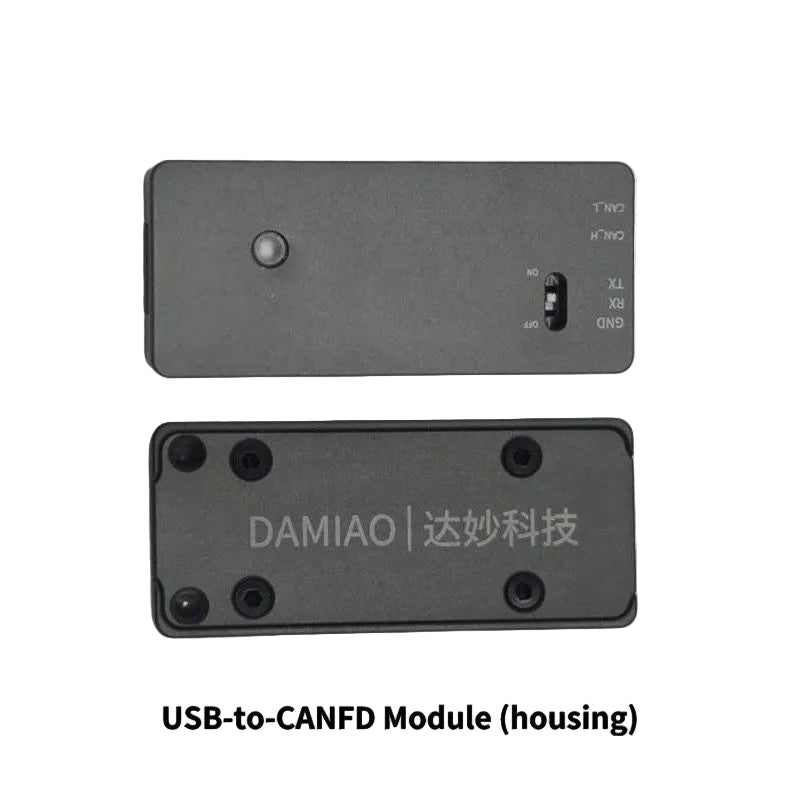

Communication Module NOT Include USB-to-CAN Module USB-to-CANFD Module USB-to-CANFD Module (housing)

Accessory Kit NOT Include Include Adapter

Made with care

Great value

Elegant design

Quality materials

This product is crafted with quality materials to ensure durability and performance. Designed with your convenience in mind, it seamlessly fits into your everyday life.

We strive to process and ship all orders in a timely manner, working diligently to ensure that your items are on their way to you as soon as possible.

We are committed to ensuring a positive shopping experience for all our customers. If for any reason you wish to return an item, we invite you to reach out to our team for assistance, and we will evaluate every return request with care and consideration.

DAMIAO DM-J3507-2EC · Apple风格

Application Scenarios

🤖Humanoid Robots

🦾Robotic Arms

🦿Exoskeletons

🐕Quadruped Robots

🚗AGV Vehicles

🔧ARU Robots

Technical Specifications

Parameter	Value
Model	DM-J3507-2EC
Nominal Voltage	24V
Nominal Current	3.0A (1.2A)
Peak Current	8.3A (4A)
Nominal Torque	0.8 N·m
Peak Torque	3 N·m
Nominal Speed	150 rpm
Max. No-load Speed	460 rpm
Reduction Ratio	7:1
Pole Pairs	14
Phase Inductance	235 μH
Phase Resistance	0.8 Ω
Outer Diameter	46 mm
Height	37.9 mm
Motor Weight	150 g
Encoder Resolution	14-bit
Number of Encoders	2
Encoder Type	Magnetic
Control Interface	CAN @ 1 Mbps
Configuration Interface	UART @ 921600 bps
Control Modes	MIT / Speed / Position
Protection	Over-temp. 120℃, config. ≤100℃; over-voltage ≤30V; over-current ≤9.8A; under-voltage ≥15V; comm. loss exit enable
