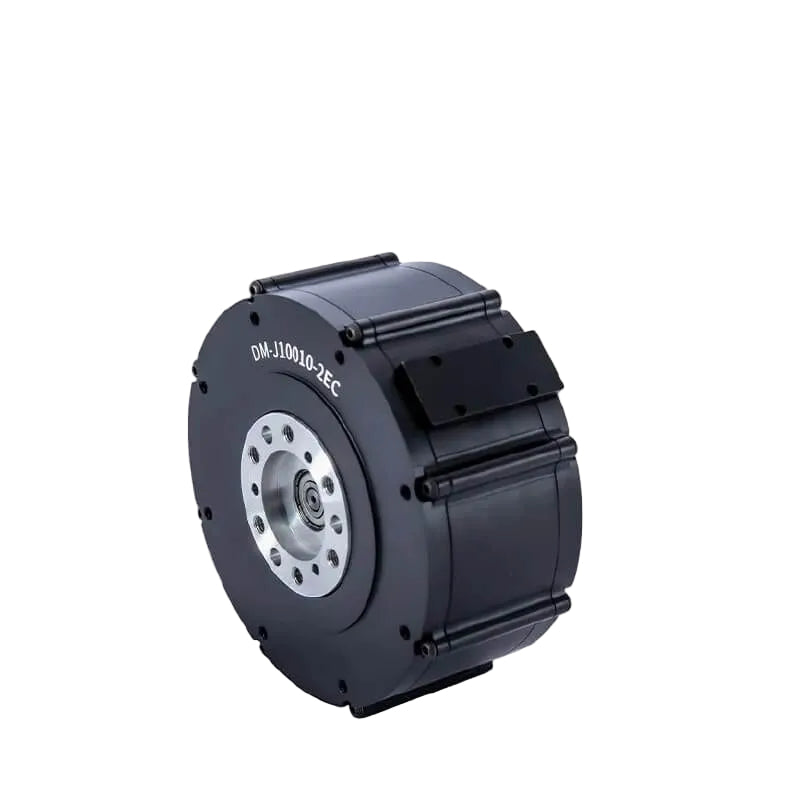

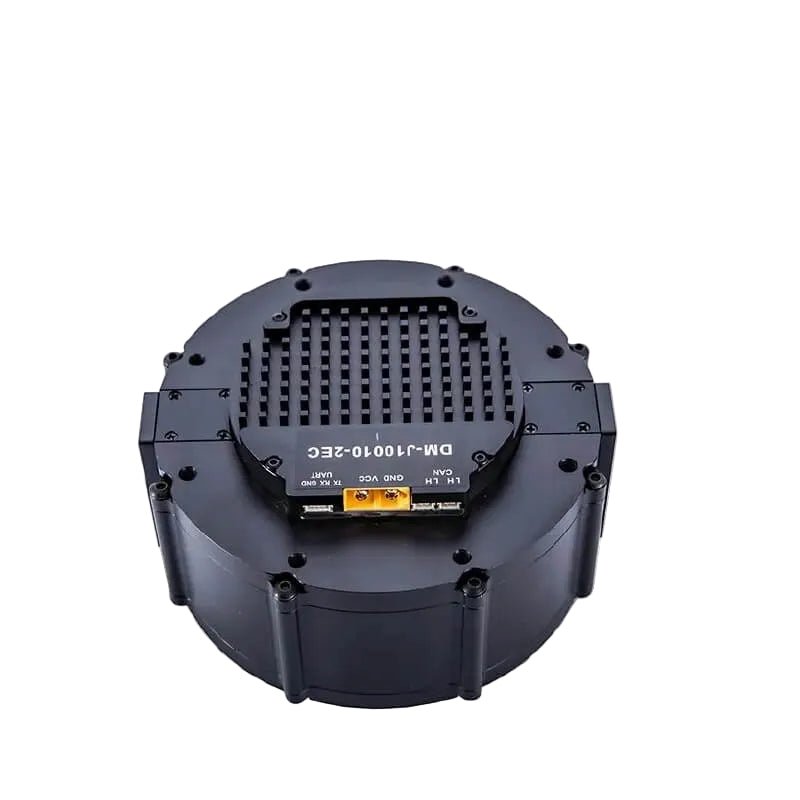

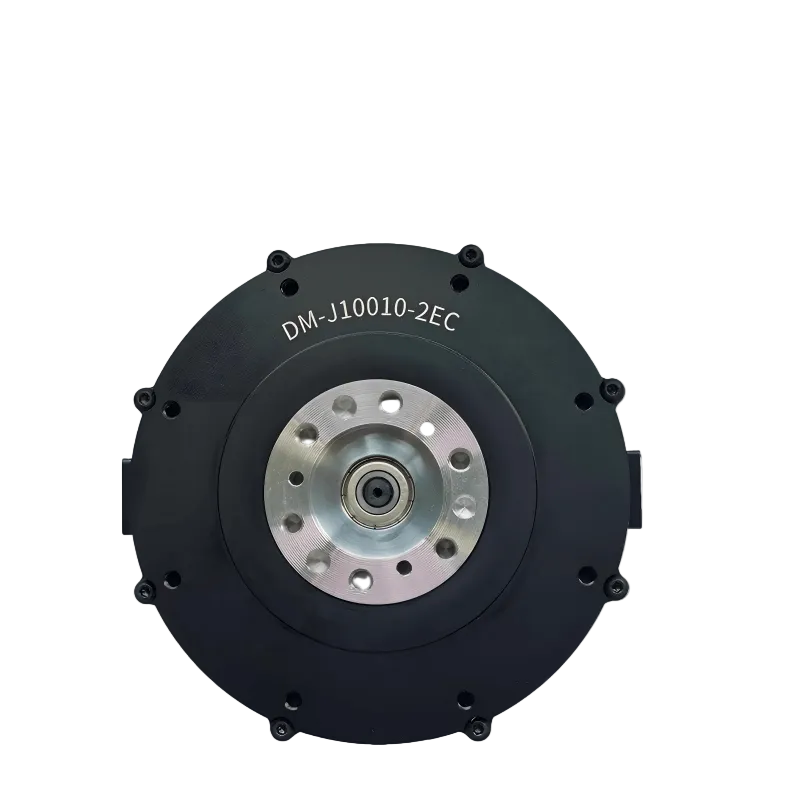

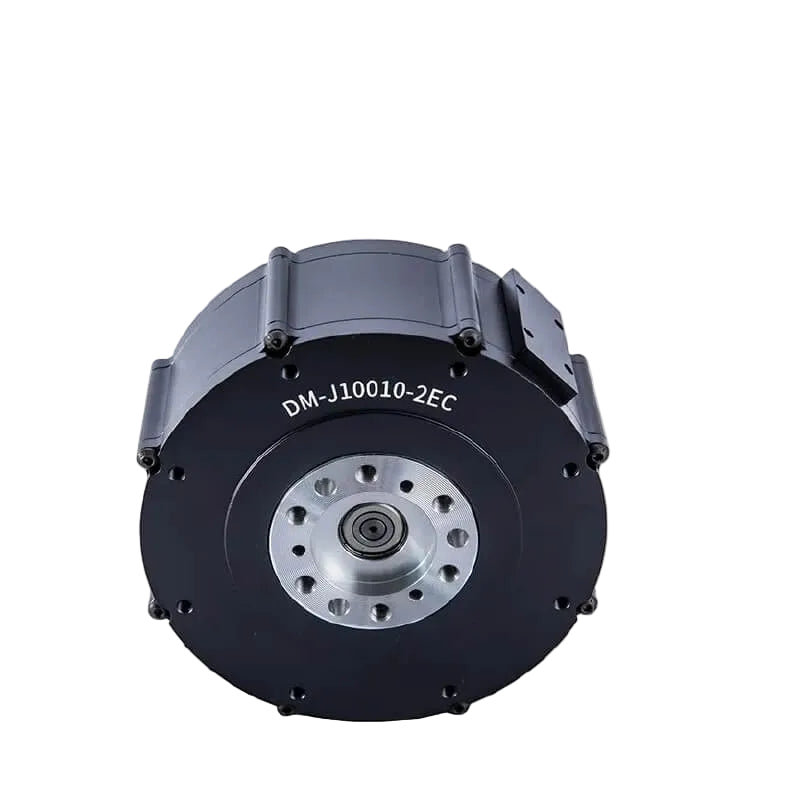

DAMIAO DM-J10010-2EC Motor

¥455.00

Taxes included.

VersionInclude Driver

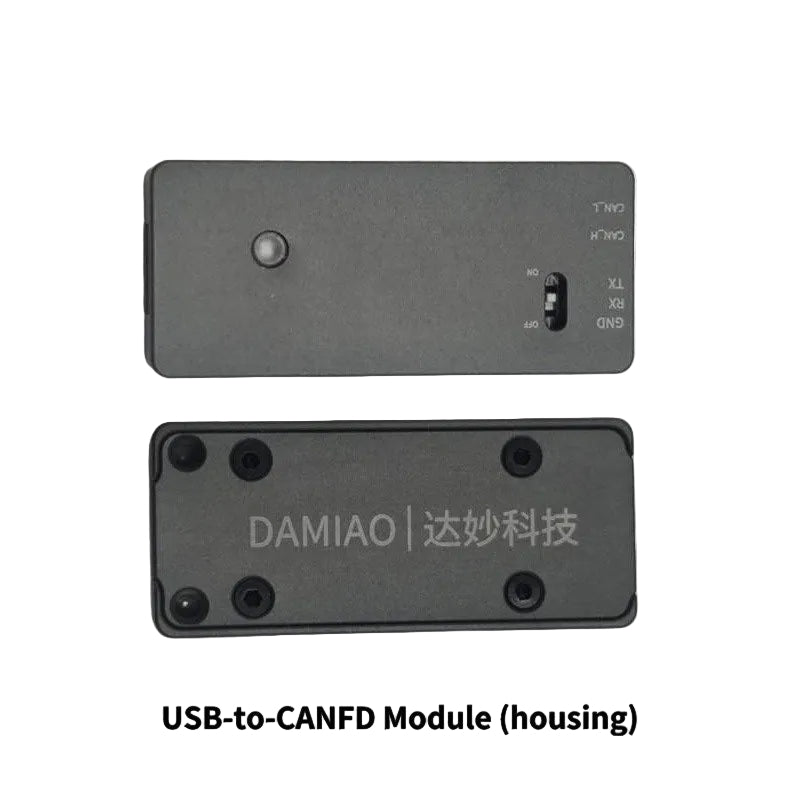

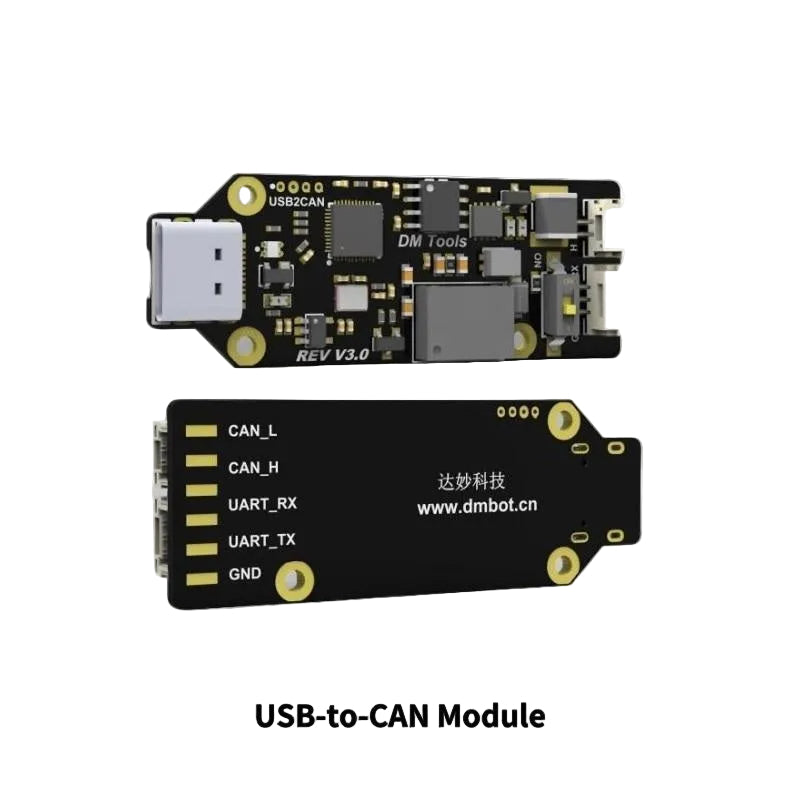

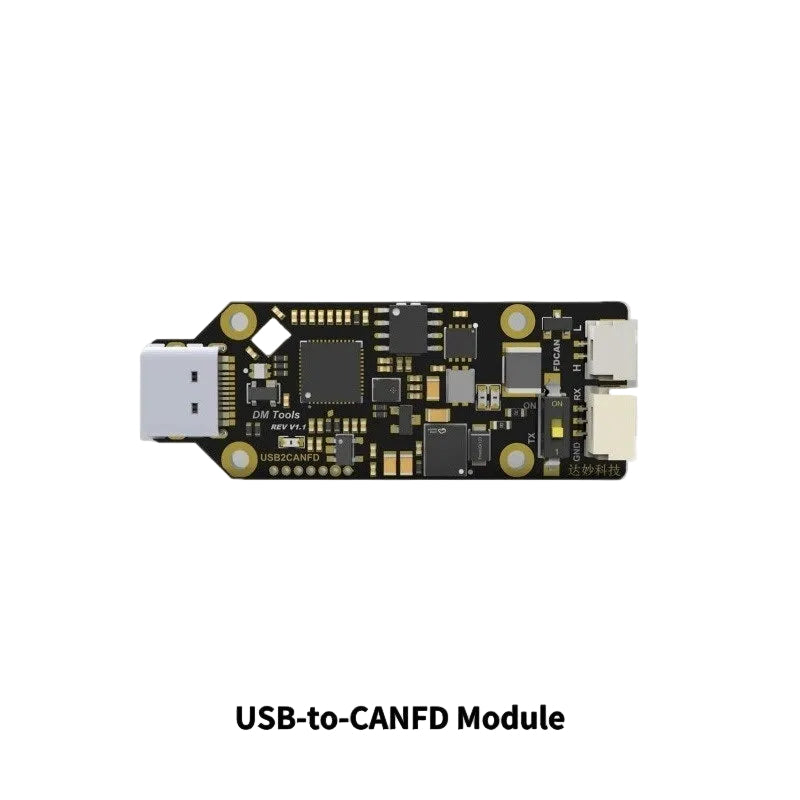

Communication Module NOT Include USB-to-CAN Module USB-to-CANFD Module USB-to-CANFD Module (housing)

Made with care

Great value

Elegant design

Quality materials

This product is crafted with quality materials to ensure durability and performance. Designed with your convenience in mind, it seamlessly fits into your everyday life.

We strive to process and ship all orders in a timely manner, working diligently to ensure that your items are on their way to you as soon as possible.

We are committed to ensuring a positive shopping experience for all our customers. If for any reason you wish to return an item, we invite you to reach out to our team for assistance, and we will evaluate every return request with care and consideration.

DAMIAO DM-J10010-2EC · Apple风格

Application Scenarios

🤖Humanoid Robots

🦾Robotic Arms

🦿Exoskeletons

🐕Quadruped Robots

🚗AGV Vehicles

🔧ARU Robots

Technical Specifications

Parameter	Value
Model	DM-J10010-2EC
Nominal Voltage	48V
Nominal Current	20A
Peak Current	70A
Nominal Torque	40 N·m
Peak Torque	150 N·m
Nominal Speed	100 rpm
Max. No-load Speed	150 rpm
Reduction Ratio	10:1
Pole Pairs	21
Phase Inductance	100 μH
Phase Resistance	0.13 Ω
Outer Diameter	112 mm
Height	62 mm
Motor Weight	1485 g
Encoder Resolution	14 Bit
Encoder Quantity	2
Encoder Type	Single-Turn Magnetic Encoder
Control Interface	CAN @ 1 Mbps
Configuration Interface	UART @ 921600 bps
