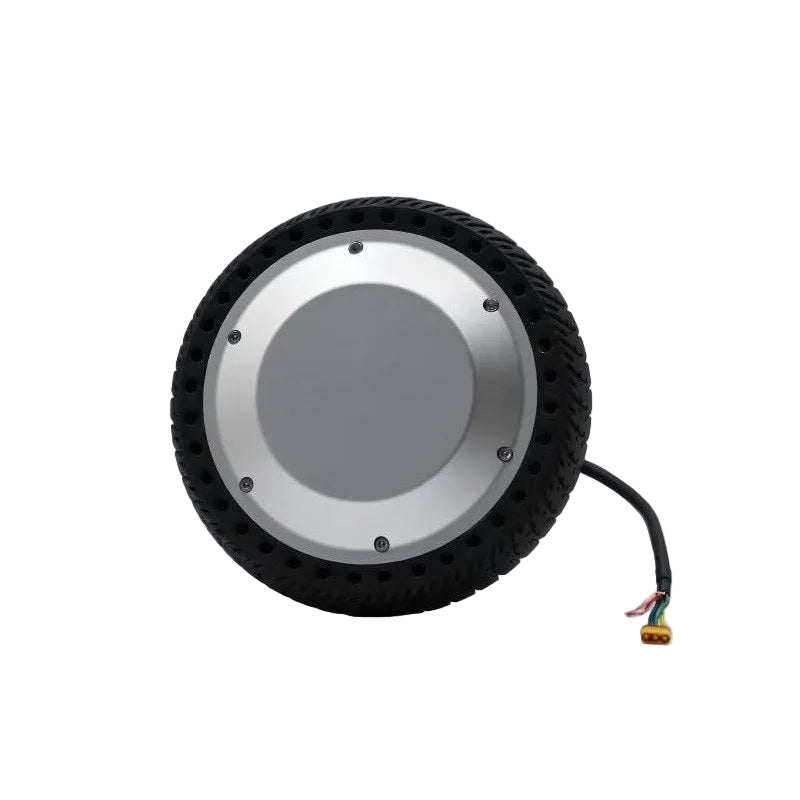

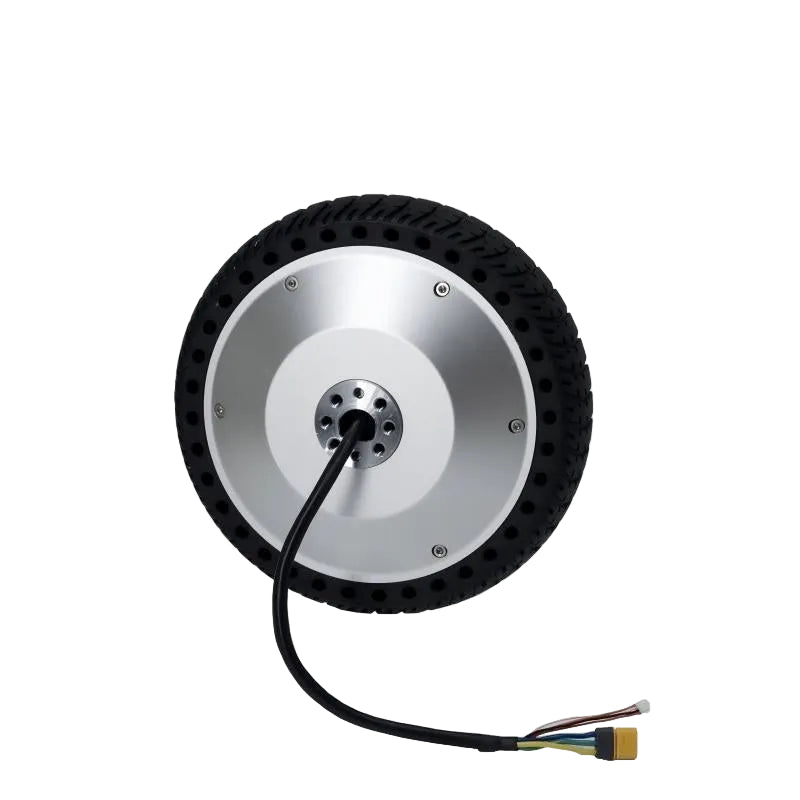

DAMIAO DM-H65-1EC Motor

¥135.00

Taxes included.

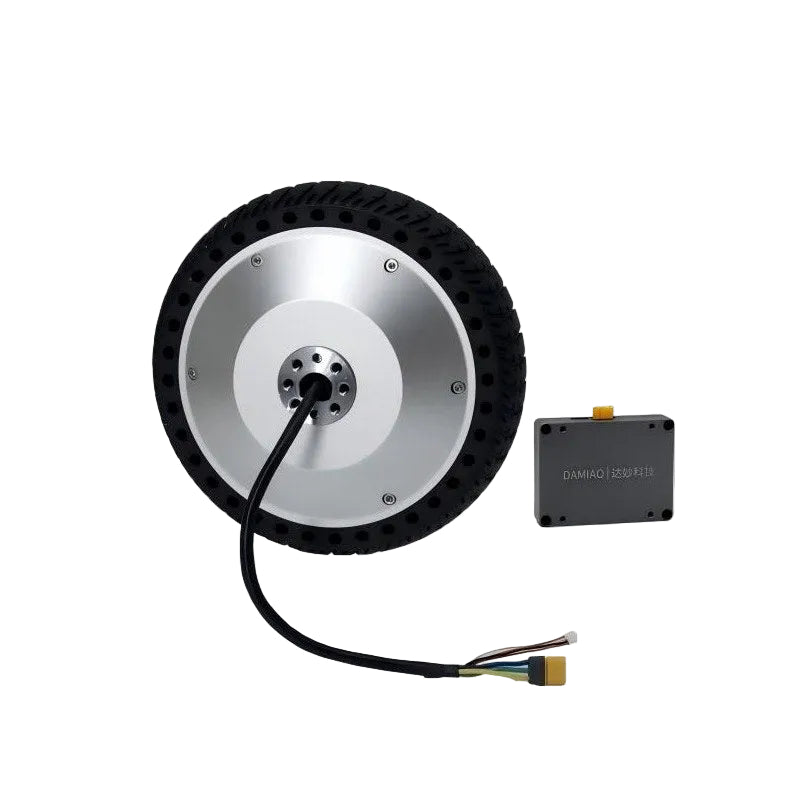

Version Only Motor Not Include Driver Include Driver Only Driver

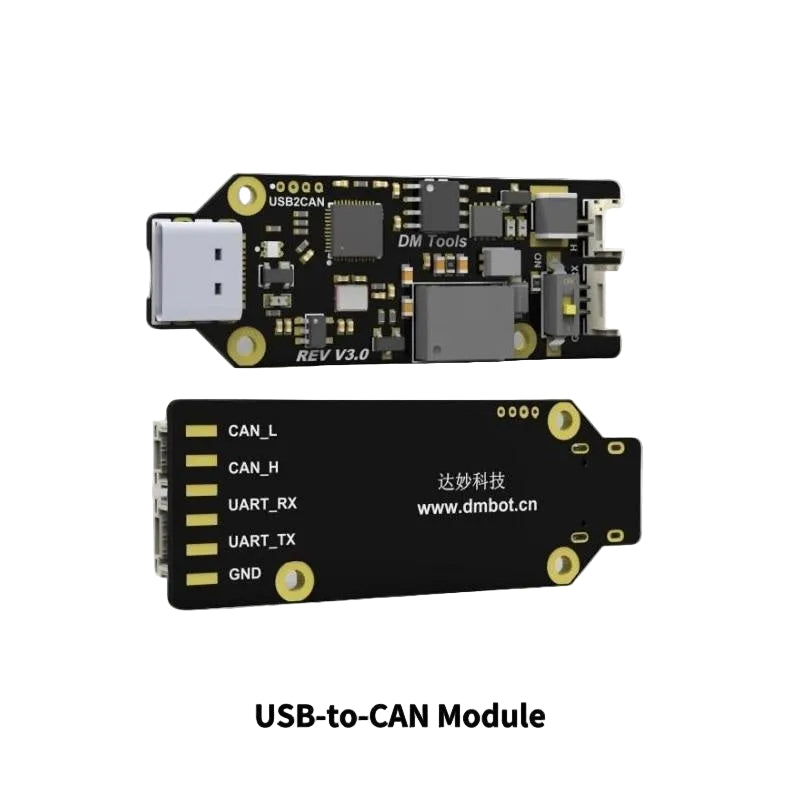

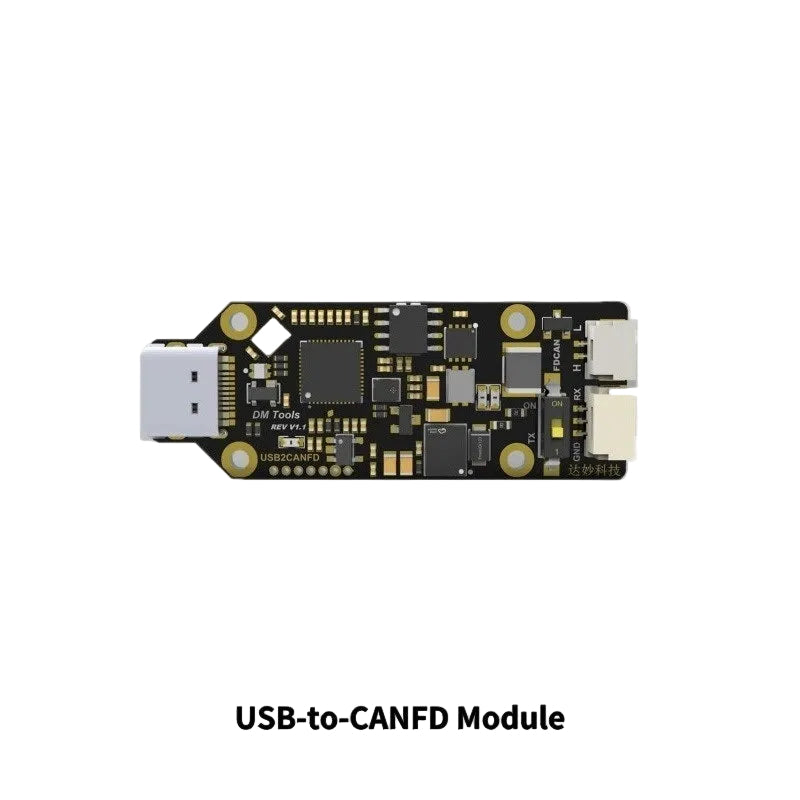

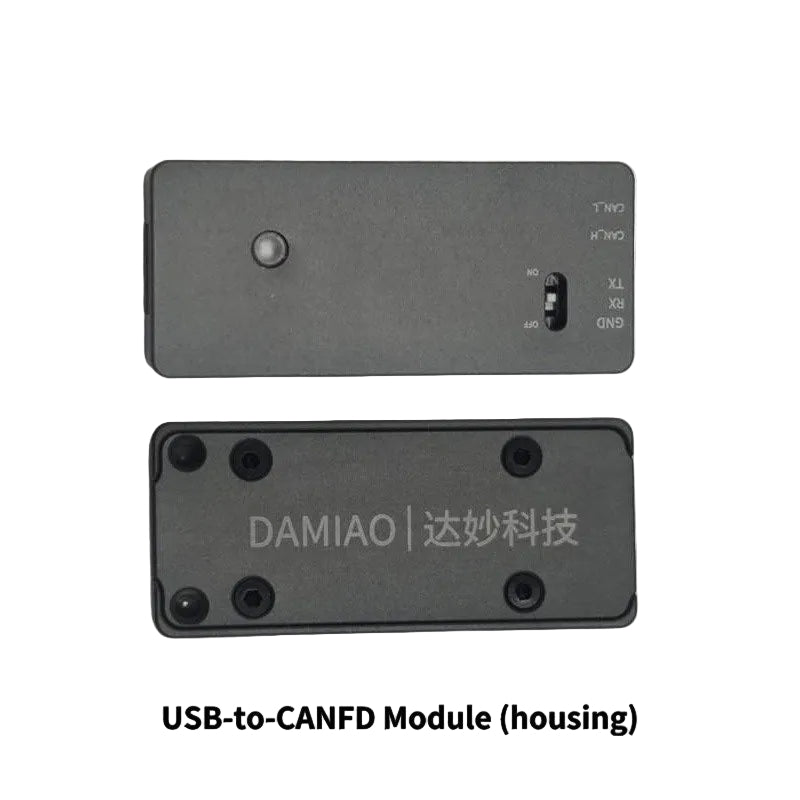

Communication Module NOT Include USB-to-CAN Module USB-to-CANFD Module USB-to-CANFD Module (housing)

Made with care

Great value

Elegant design

Quality materials

This product is crafted with quality materials to ensure durability and performance. Designed with your convenience in mind, it seamlessly fits into your everyday life.

We strive to process and ship all orders in a timely manner, working diligently to ensure that your items are on their way to you as soon as possible.

We are committed to ensuring a positive shopping experience for all our customers. If for any reason you wish to return an item, we invite you to reach out to our team for assistance, and we will evaluate every return request with care and consideration.

DAMIAO DM-H65-1EC · Apple风格

Application Scenarios

🤖Humanoid Robots

🦾Robotic Arms

🦿Exoskeletons

🐕Quadruped Robots

🚗AGV Vehicles

🔧ARU Robots

Technical Specifications

Parameter	DM-H65-1EC
Model	DM-H65-1EC
Nominal Voltage	24V/36V/48V (wide-voltage, supporting 24-48V)
Nominal Current	9.4A/5.10A@24V 9.4A/3.45A@36V 9.4A/2.56A@48V
Peak Current	33.6A/21.55A@24V 33.6A/14.00A@36V 33.6A/10.40A@48V
Nominal Torque	6.0Nm
Peak Torque	21.5Nm
Nominal Speed	120rpm
Max. No-load Speed	260rpm@24V 395rpm@36V 480rpm@48V
Number of slots	27
Pole Pairs	15
Phase Inductance	750uH (@25℃)
Phase Resistance	420Ω (@25℃)
Outer Diameter	171mm
Height	66.3mm
Motor Weight	3150g
Encoder Resolution	17Bits
Encoder Accuracy	±0.05°
Number of Encoders	1
Control Interface	CAN@5Mbps (Max)
Configuration Interface	UART@921600bps
Control Mode	MIT / Velocity / Position / Impedance-Force Hybrid
