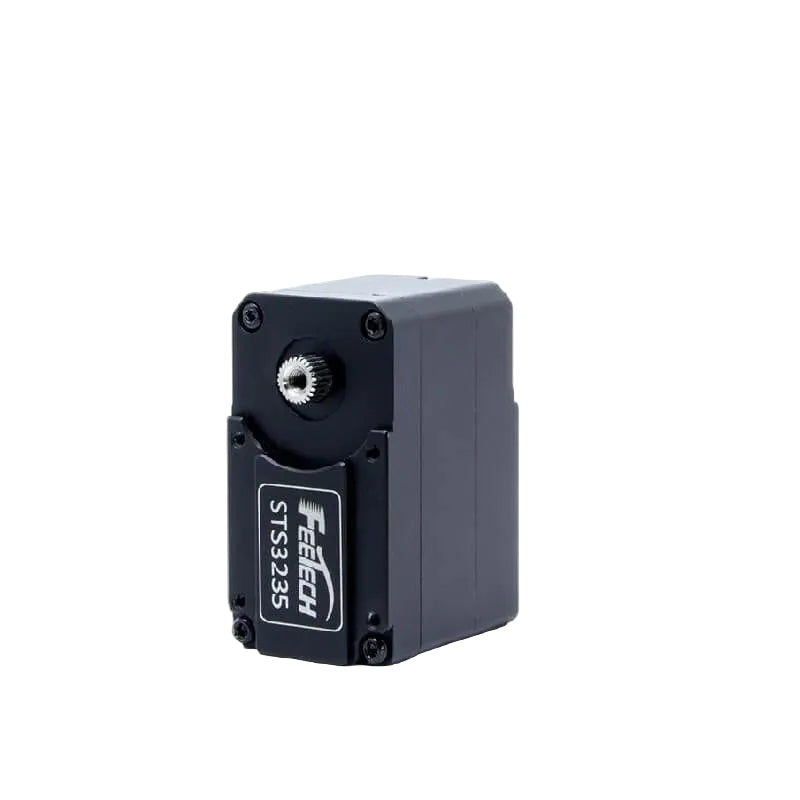

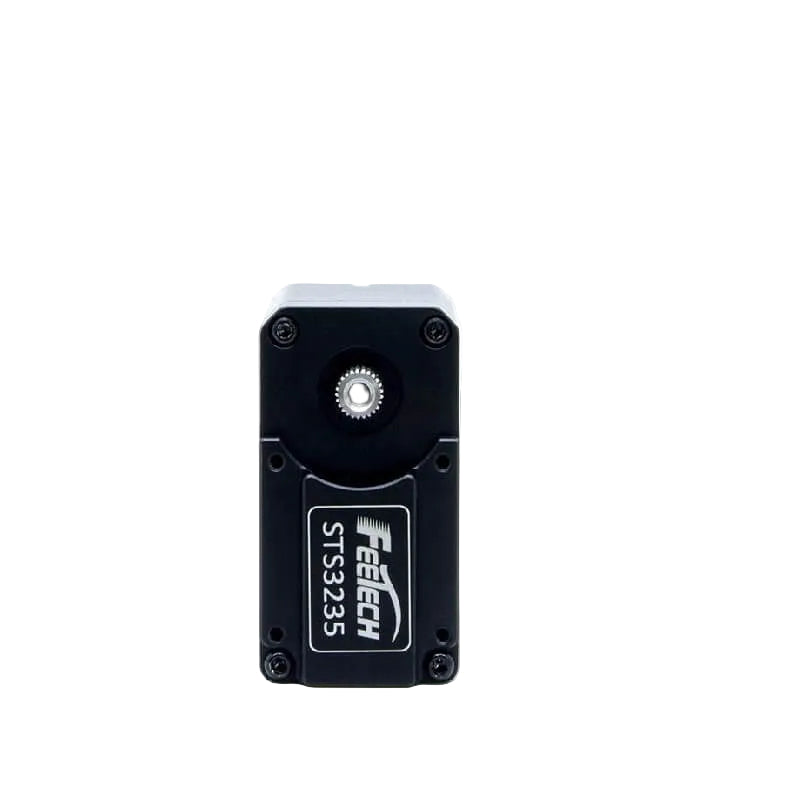

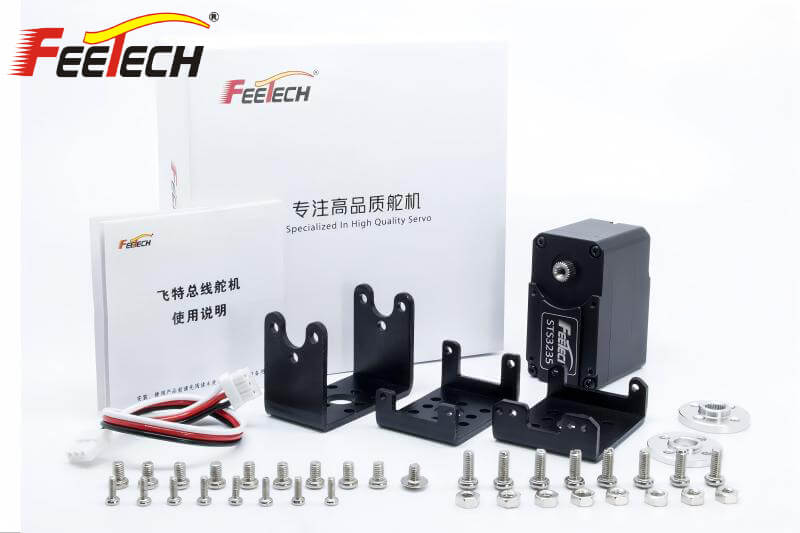

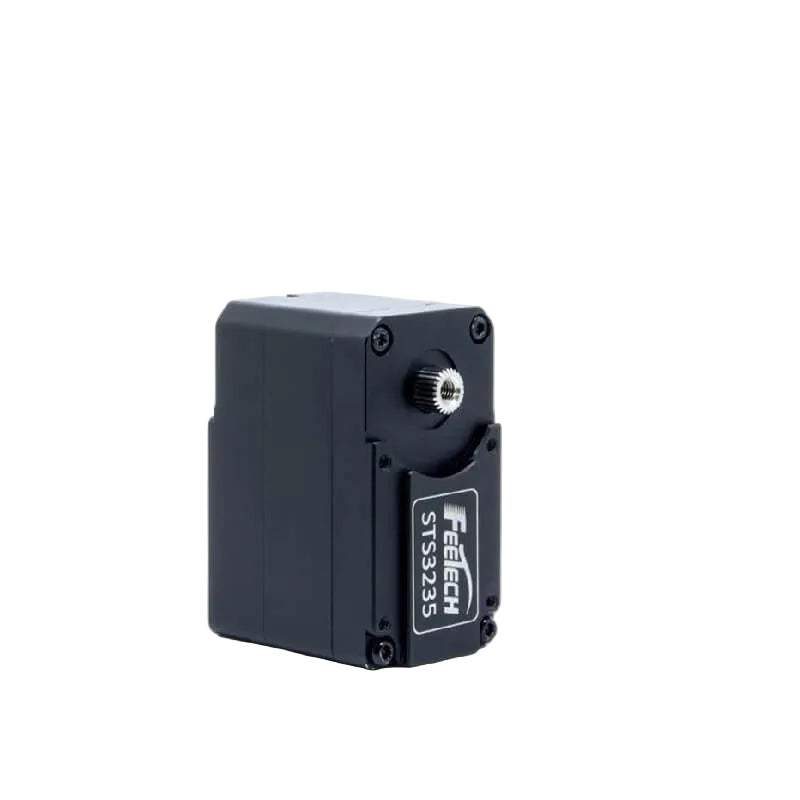

FEETECH STS3235 Servo Motor
ST-3235-C001 (12V30KG)
$56.00
Skip to product information
RISTA · STS3235
Application Scenarios
🤖Humanoid Robots
🦾Robotic Arms
🦿Exoskeletons
🐕Quadruped Robots
🚛AGV Vehicles
🤖ARU Robots
Technical Specifications
| Parameter | STS3235 |
|---|---|
| Model | STS3235 |
| Product Name | 12V 30KG Magnetic Encoder Double Shaft TTL Servo |
| Storage Temperature Range | -30℃～80℃ |
| Operating Temperature Range | -20℃～60℃ |
| Dimensions | A：45.22mm B：24.72mm C：35mm |
| Weight | 70.5± 1g |
| Gear type | Steel Gear |
| Limit angle | NO limit |
| Bearing | Ball bearings |
| Horn gear spline | 25T/OD5.9mm |
| The rocker phantom | 0° |
| Case | Aluminium |
| Connector wire | 15cm |
| Motor | Core Motor |
| Operating Voltage Range | 6-12V |
| No load speed | 0.222sec/60°@12V |
| Running current (at no load) | 190mA@12V |
| Peak stall torque | 30kg.cm@12V |
| Rated torque | 10kg.cm@12V |
| Stall current | 2.7A@12V |
| Command signal | Digital Packet |
| Protocol Type | Half Duplex Asynchronous Serial Communication |
| ID Range | 0-253 |
| Communication speed | 38400bps ~ 1 Mbps |
| Running degree | 360° (when 0~4096) |
| Feedback | Load, Position, Speed, InputVoltage, Temperature |
