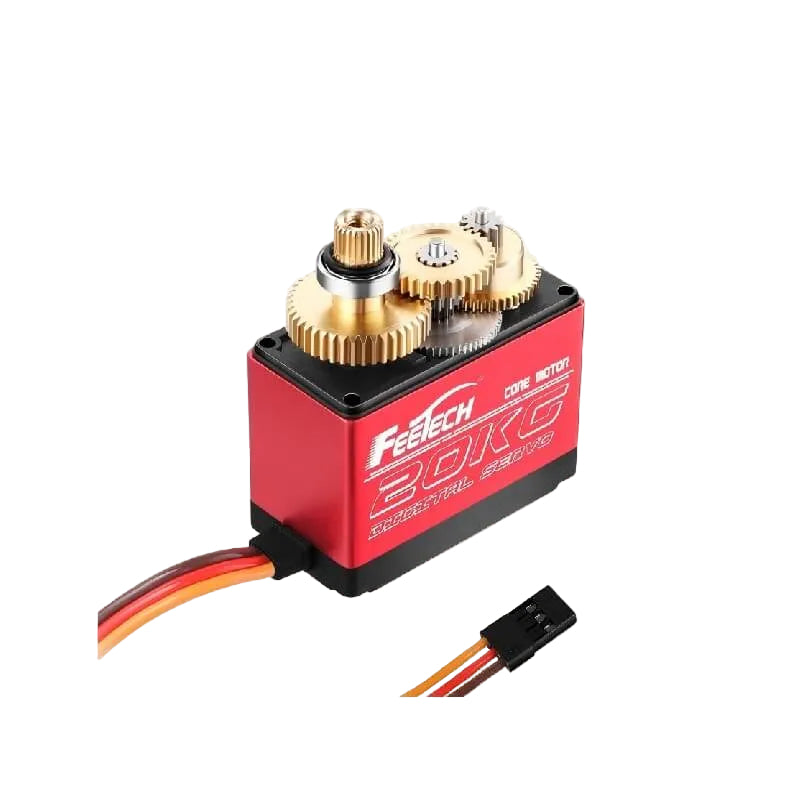

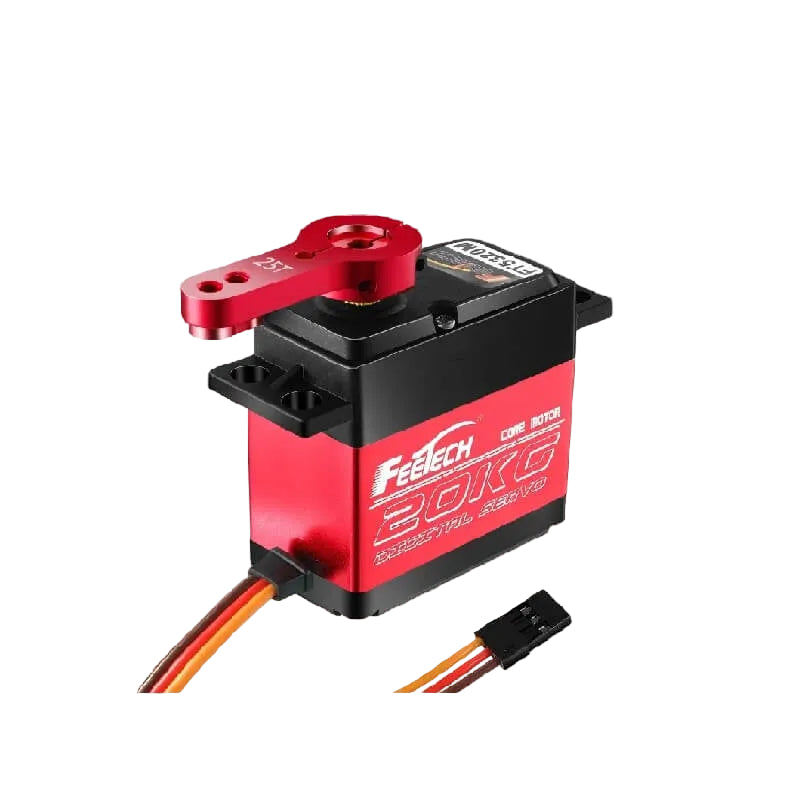

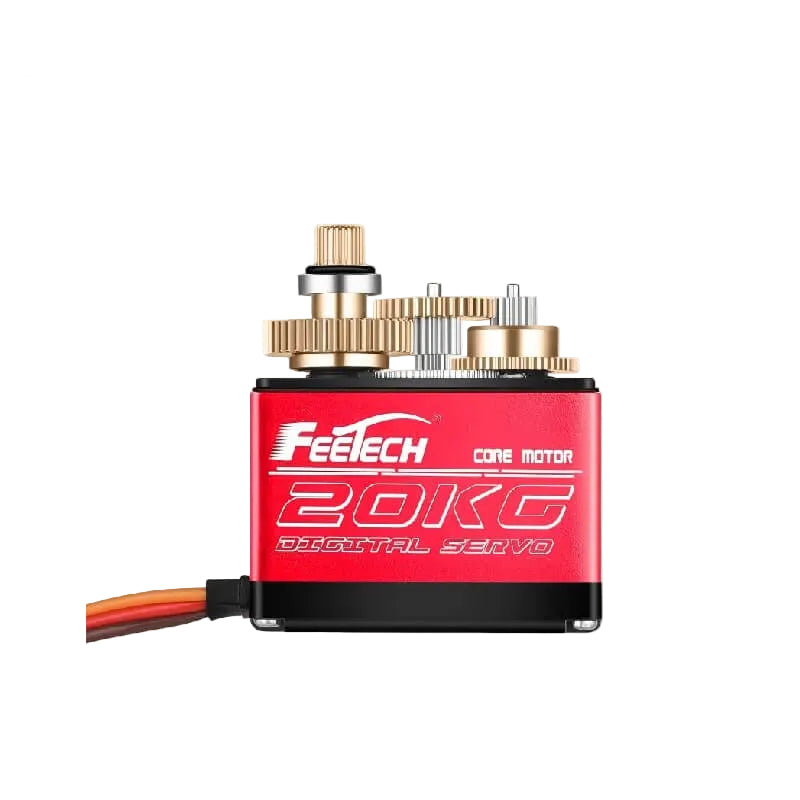

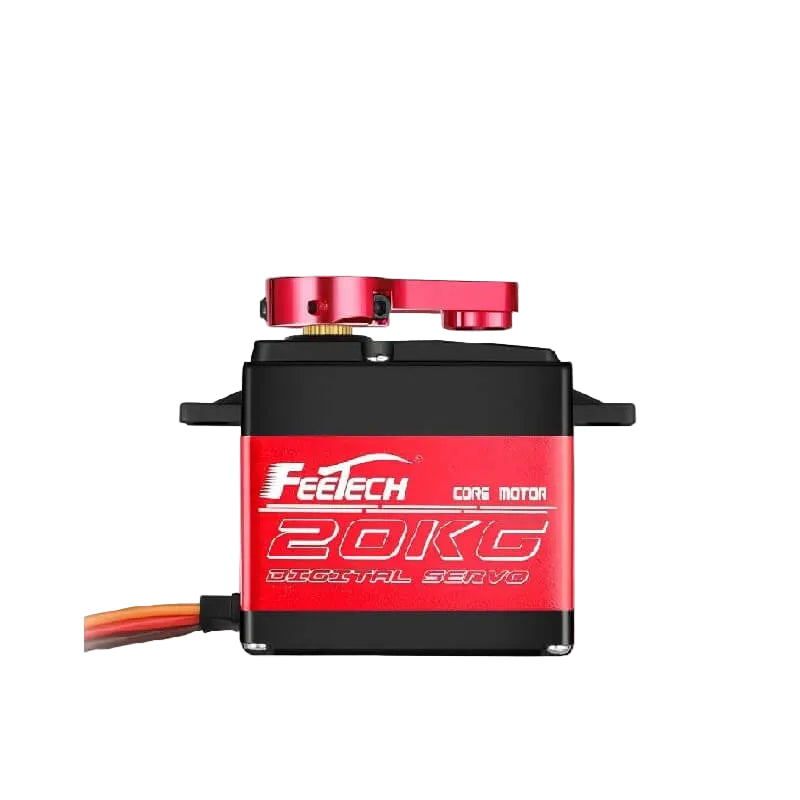

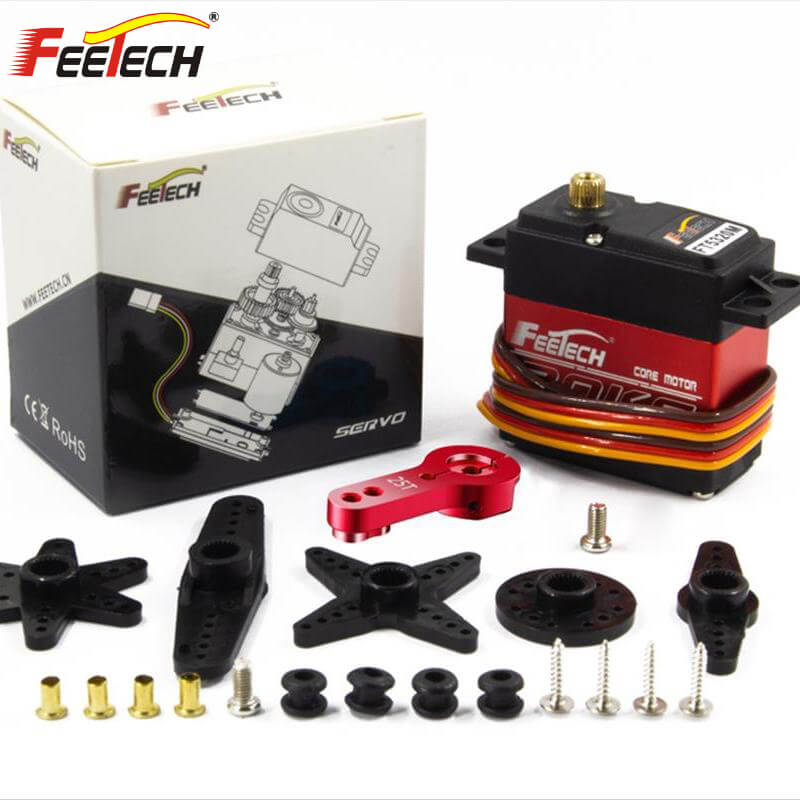

FEETECH FT5320M Servo Motor
FT-5320-C001 (7.4V20KG)
$19.00
Skip to product information
RISTA · FT5320M
Application Scenarios
🤖Humanoid Robots
🦾Robotic Arms
🦿Exoskeletons
🐕Quadruped Robots
🚛AGV Vehicles
🤖ARU Robots
Technical Specifications
| Parameter | FT5320M |
|---|---|
| Model | FT5320M |
| Product Name | 7.4V 20kg.cm Digital 180 Degree Aluminum Medium Shell Copper Gear Iron Core Servo |
| Storage Temperature Range | -30℃～80℃ |
| Operating Temperature Range | -20℃～60℃ |
| Dimensions | A：55mm B：20mm C:43mm |
| Weight | 67±1g |
| Gear type | Copper Gear |
| Limit angle | NO limit |
| Bearing | Ball bearings |
| Horn gear spline | 25T/5.9mm |
| Horn type | Plastic |
| Case | PA+Aluminium |
| Connector wire | 30CM |
| Motor | Core Motor |
| Operating Voltage Range | 6V-7.4V |
| Idle current (at stopped) | 6MA@7.4V |
| No load speed | 0.151sec/60°@7.4V |
| Running current (at no load) | 120mA@7.4V |
| Peak stall torque | 20kg.cm@7.4V |
| Rated torque | 6.5kg.cm@7.4V |
| Stall current | 3A@7.4V |
| Command signal | Pulse width modification |
| Amplifier type | Digital comparator |
| Pulse width range | 500~2500usec |
| Stop position | 1500 μsec |
| Running degree | 180° (at 500 → 2500 μsec) |
| Dead band width | ≤4 μsec |
| Rotating direction | Counterclockwise (1500→2000 μsec) |
